153 | Mixing Setpoint Control | Tekmar

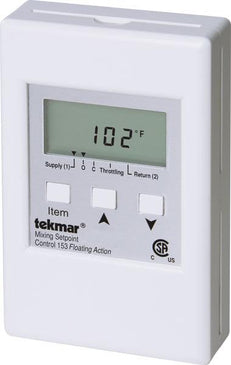

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 153

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 153 Documents

Datasheet Installation Instructions More Info

Overview

Details for 153

Mixing Setpoint Control

The Mixing Setpoint Control 153 is designed to operate a mixing device to maintain a setpoint water temperature. It can be used in applications ranging from boiler protection of cast iron boilers to maintaining setpoint in a heat pump system. This product is capable of operating a floating action motor for a mixing valve or damper through dry contact open and close relays.

Features

Digital display
Boiler return protection
Floating action mixing
Ten year memory backup

Specifications

Item Number	153
Brand	Tekmar
Category	Setpoint and Pump Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, -20 to 120 degrees F (-30 to 50 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	4-3/4" H x 2-7/8" W x 7/8" D (120 x 74 x 22 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Hydronic - HVAC Control Type	Mixing Setpoint Control
Power Supply	24 V (ac) plus / minus 10 percent, 50/60 Hz, 3 VA, 24 V (dc) plus / minus 10 percent, 0.03 A
Relay	240 V (ac) 10 A max, 1/3 hp
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
