094 | Snow/Ice Sensor - 210' (64m) Wire | Tekmar

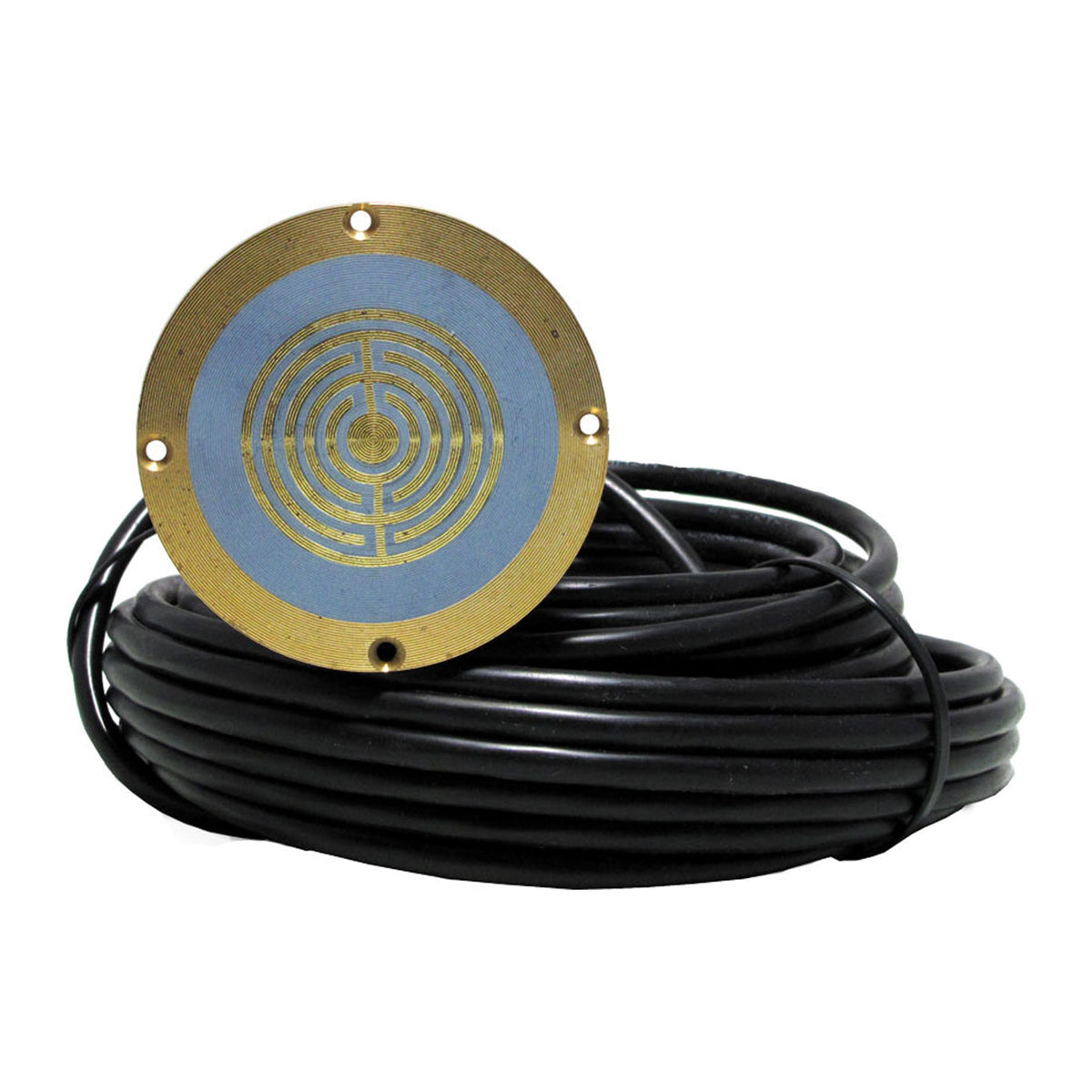

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 094

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 094 Documents

Datasheet Installation Instructions More Info

Overview

Details for 094

Snow/Ice Sensor - 210' (64m) Wire

The Snow/Ice Sensor 094 is an in ground sensor used with tekmar snow melting controls to automatically detect snow or ice on a driveway or walkway. The 094 has 208 FT (64 m) of wire. This product can be used in applications ranging from residential driveways to commercial building fronts such as emergency access entries. This sensor allows tekmar snow melting controls to automatically operate the snow/ice melt system only when snow or ice is present, while also providing temperature feedback to the control.

Features

208 FT (64 m) of cable
Automatic snow/ice detection
Slab temperature sensing
Designed for long life in driveway and walkway installations
Long wire included so in field splicing is not necessary

Specifications

Item Number	094
Brand	Tekmar
Agency Approvals	CSA C US with tekmar Snow Melting Controls
Dimensions	1-3/4" H x 3-7/16" OD (45 mm H x 87 mm OD)
Load Rating	15,000 lb (66,723 N) distributed load, non-impact, installed in concrete according to the manual
Operating Range	-30 to 170 degrees F (-34 to 77 degrees C)
Sensor Material	Silicon brass, 208 ft. (64 m) 5 conductor stranded wire with polyethylene jacket
