090 | Snow/Ice Sensor | Tekmar

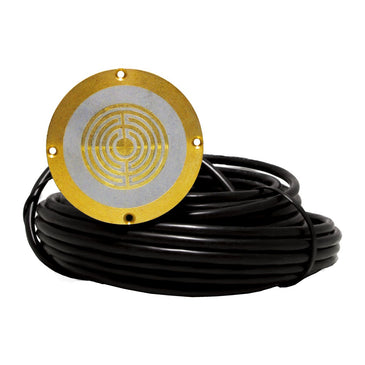

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 090

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 090 Documents

Datasheet Installation Instructions More Info

Overview

Details for 090

Snow/Ice Sensor

The Snow/Ice Sensor 090 is an in ground sensor used with tekmar snow melting controls to automatically detect snow or ice on a driveway or walkway. The 090 has 65 feet (20 m) of wire. This product can be used in applications ranging from residential driveways to commercial building fronts such as emergency access entries. This sensor allows tekmar snow melting controls to automatically operate the snow/ice melt system only when snow or ice is present, while also providing slab temperature feedback to the control.

Features

Long wire included so in field splicing is not necessary
Designed for long life in driveway and walkway installations
Automatic snow/ice detection
Slab temperature sensing
65 FT (20 m) of cable

Specifications

Item Number	090
Brand	Tekmar
Agency Approvals	CSA C US with tekmar Snow Melting Controls
Dimensions	1-3/4" H x 3-7/16" OD (45 mm H x 87 mm OD)
Load Rating	15,000 lb (66,723 N) distributed load, non-impact, installed in concrete according to the manual
Operating Range	-30 to 170 degrees F (-34 to 77 degrees C)
Sensor Material	Silicon brass, 65 FT (20 m) 5 conductor stranded wire with polyethylene jacket
