086 | Humidity & Temperature Sensor - Flush Mount | Tekmar

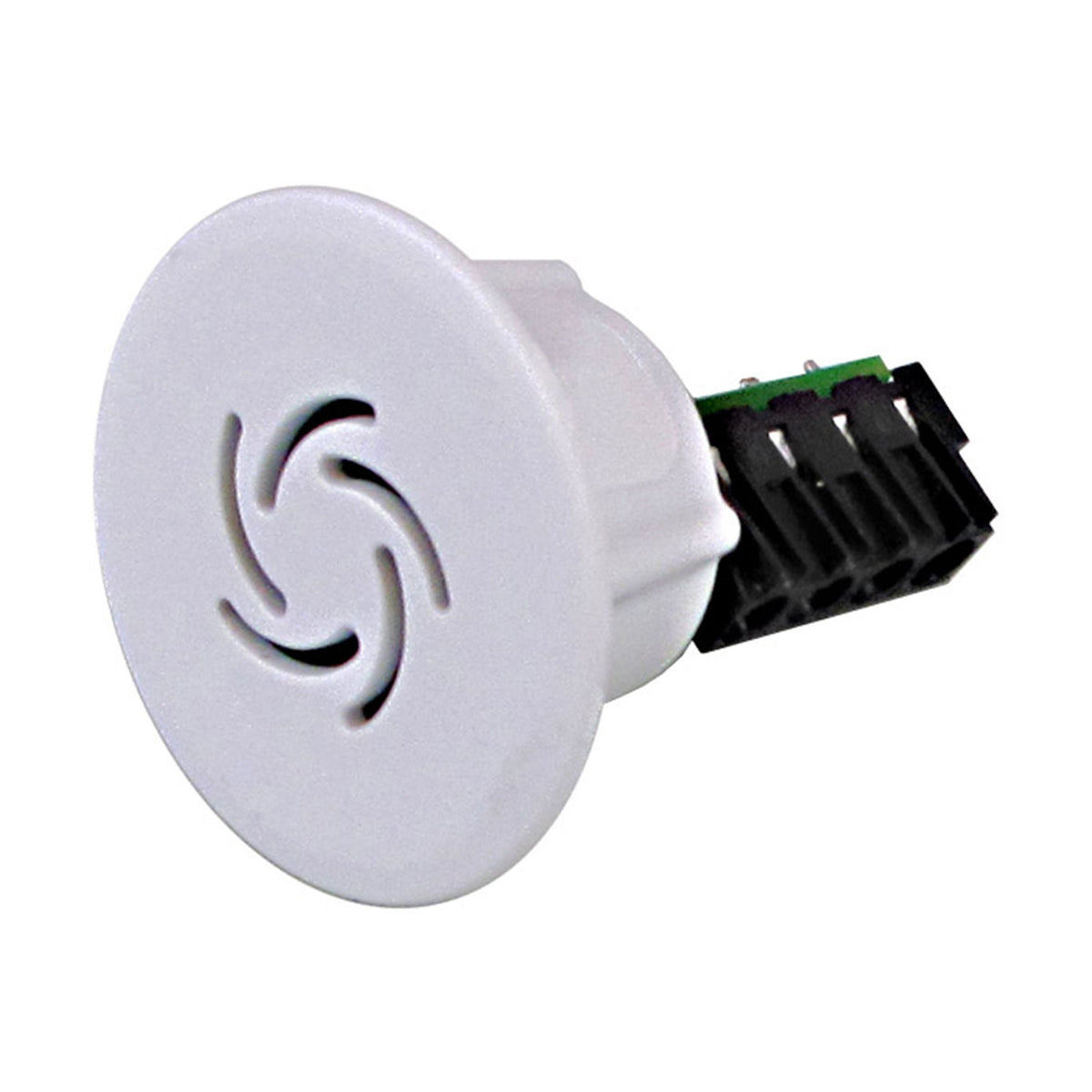

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 086

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 086 Documents

Datasheet Installation Instructions More Info

Overview

Details for 086

Humidity & Temperature Sensor - Flush Mount

The Humidity and Temperature Sensor 086 can be connected to select tekmar thermostats to remotely measure relative humidity and temperature. The 086 mounts flush or nearly flush to the wall to allow the sensor to visually blend in with the surrounding wall.

Features

Compatible with tekmar thermostats that support auxiliary humidity sensors
Hidden humidity and temperature sensing

Specifications

Item Number	086
Brand	Tekmar
Dimensions	1-7/16" O.D. x 1-9/16" D (36 O.D. x 40 mm D)
Enclosure Material	White PC-ABS plastic
Enclosure NEMA Rating	NEMA 1
Environmental Notice	Compatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone.
Humidity Sensor	0 to 90 percent plus / minus 3 percent RH
Operating Range	Indoor use only, 15 to 140 degrees F (-10 to 60 degrees C), non-condensing
Power Supply	2.7 to 5.5 V (dc), 0.5 mA max, 65 k ohms min impedance
Sensor	Temperature sensor NTC thermistor, 10 k ohms at 7
