083 | Duct Sensor - 6" Probe | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 083

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 083 Documents

Datasheet Installation Instructions More Info

Overview

Details for 083

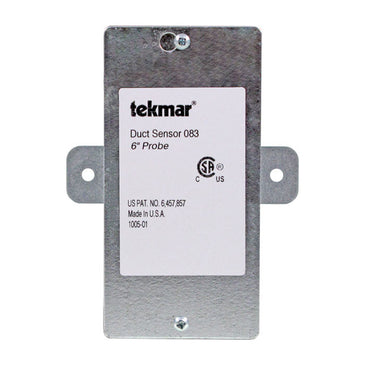

Duct Sensor - 6" Probe

The Duct Sensor 083 is a 10 k ohm temperature sensor designed to measure the average temperature of the air stream in a heating, cooling, or ventilation duct. It has a 6 inch (150 mm) long probe connected to a 2 x 4 inch electrical box for easy wiring.

Features

Corrosion resistant stainless steel probe
Designed for easy duct mounting
Thermistor accuracy of plus or minus 0.2 degrees C
CSA and C US Approved for use in USA and Canada

Specifications

Item Number	083
Brand	Tekmar
Agency Approvals	CSA C US
Dimensions	4" W x 8" H x 5" L (100 mm x 203 mm x 127 mm)
Enclosure Material	IP30, 18 Gauge Galvanized Steel
Enclosure NEMA Rating	NEMA 1
Operating Range	-40 to 250 degrees F (-40 to 121 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Sensor Material	1/4 IN (6.33 mm) O.D., 0.020 IN (.5 mm) Wall, 6" (150 mm) 304 Stainless Steel
