081 | Three Outdoor Sensor Module (Old M3040) | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 081

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 081 Documents

Datasheet Installation Instructions More Info

Overview

Details for 081

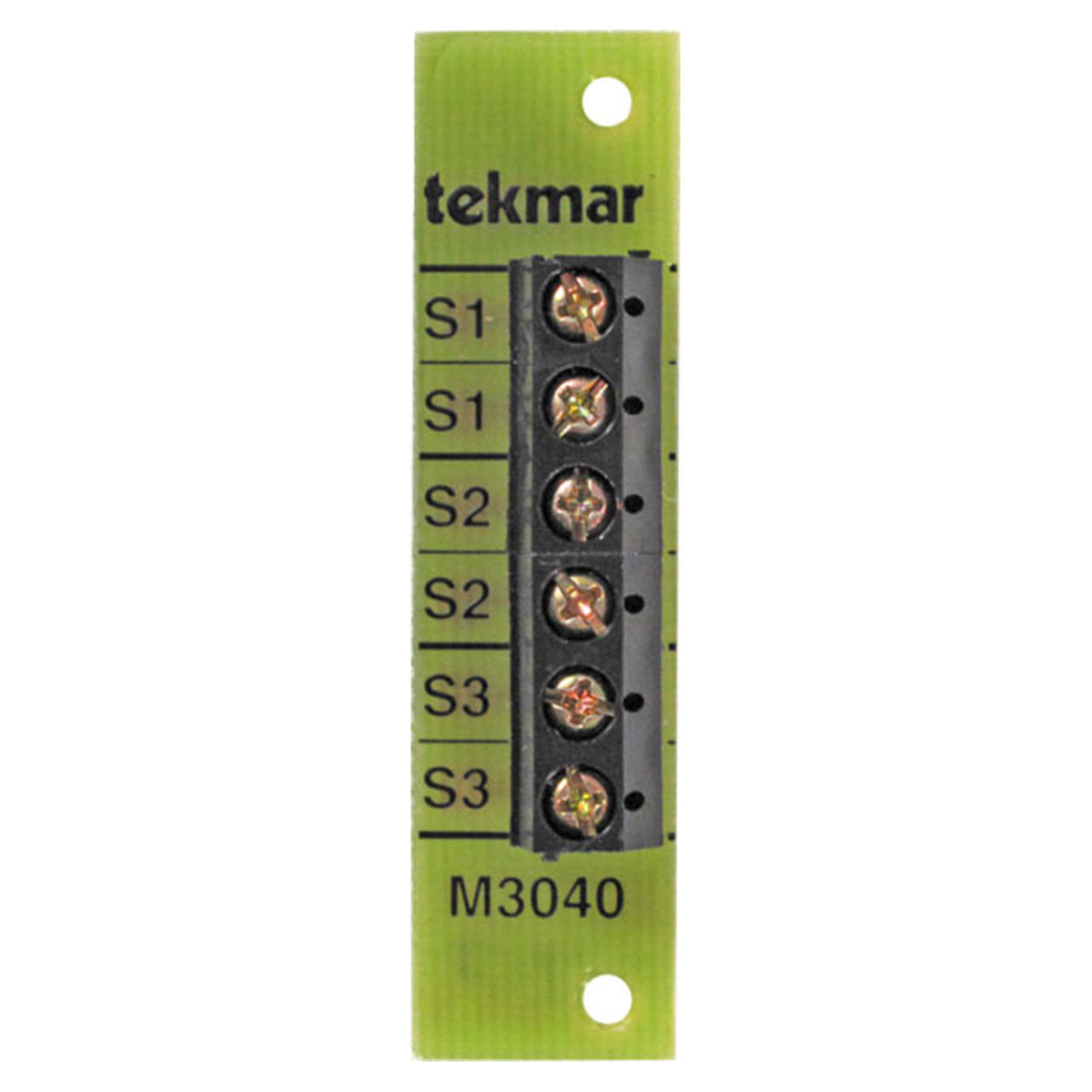

Three Outdoor Sensor Module (Old M3040)

The Three Outdoor Sensor Module 081 includes three 10 k ohm thermistors which provides an accurate measurement of the outdoor temperature. Each sensor has two separate terminals for wiring. The 081 is designed to be installed in a tekmar Outdoor Sensor 070 enclosure. This allows for four separate sensors to be combined into a single enclosure that is mounted on the exterior of the building.

Features

Provides outdoor temperature readings for multiple controls in one enclosure
Each sensor has two separate terminals for wiring
Allows for four separate sensors to be combined into a single enclosure
Mounted on the exterior of the building

Specifications

Item Number	081
Brand	Tekmar
Dimensions	2-1/8" H x 9/16" W x 9/16" D (54 x 14 x 14 mm)
Operating Range	-60 to 140 degrees F (-51 to 60 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
