Overview

Details for 080

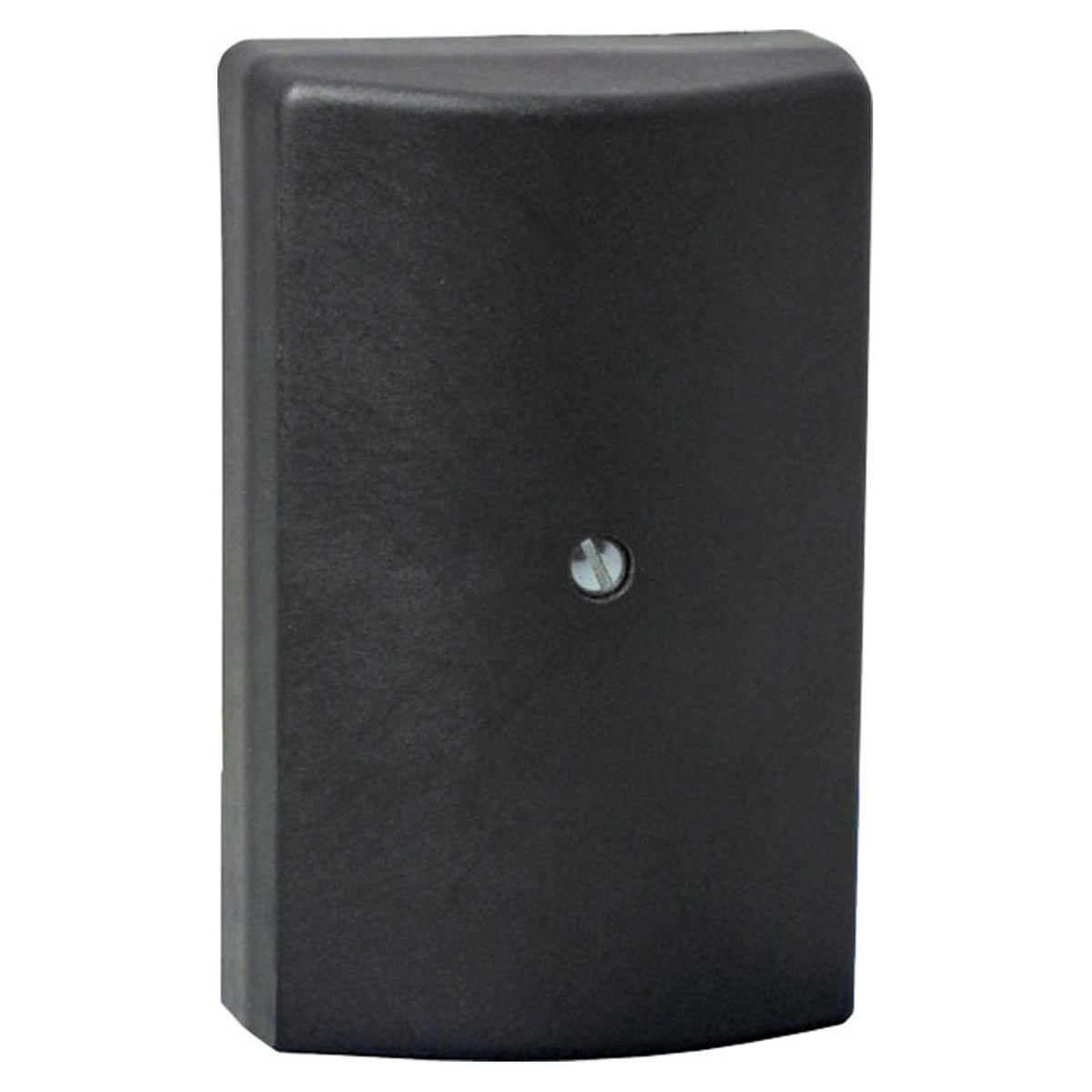

Universal Sensor Enclosure

The Universal Sensor Enclosure 080 is designed for mounting a universal sensor either into a standard 3/8 inch I.D. well, or strapped onto the surface of a 1 inch to 4 inch diameter pipe. The end of the enclosure has a knock out to connect 1/2 inch conduit.

Features

Flame-retardant, can withstand high temperatures
Allows conduit to run directly to the sensor
This tekmar Universal Sensor Enclosure provides a housing for the 071 sensor
CSA and C US Approved for use in USA and Canada

Specifications

Item Number	080
Brand	Tekmar
Agency Approvals	CSA C US
Ambient Conditions	-60 to 255 degrees F (-51 to 125 degrees C)
Dimensions	4-1/2" H x 2-7/8" W x 1-1/2" D (73 x 114 x 38 mm)
Enclosure Material	Glass reinforced modified PET
Enclosure NEMA Rating	NEMA 2
Operating Range	-60 to 140 degrees F (-51 to 60 degrees C)
Sensor	tekmar type : 071, 078, 082
