079 | Slab Sensor | Tekmar

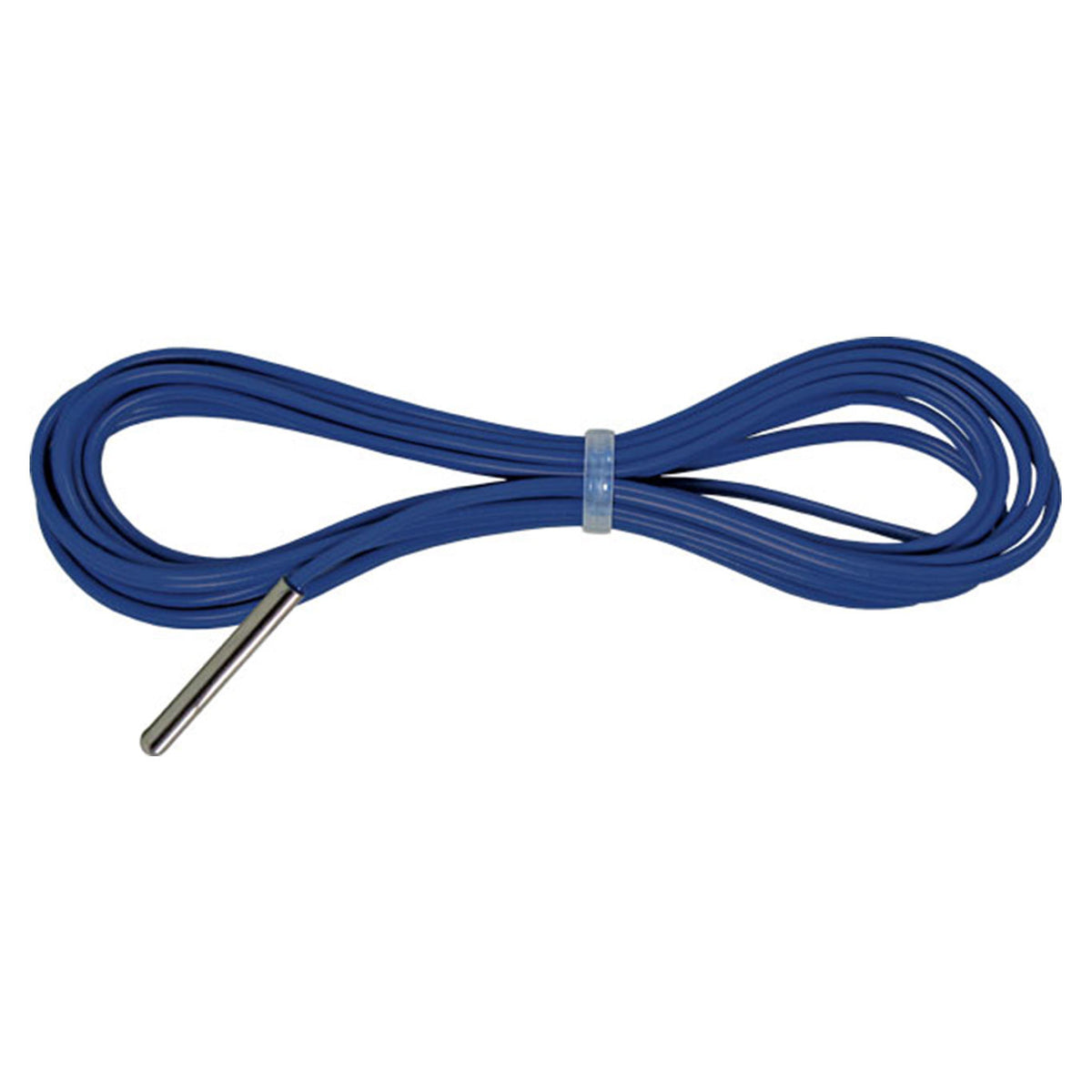

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 079

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 079 Documents

Datasheet Installation Instructions More Info

Overview

Details for 079

Slab Sensor

The Slab Sensor 079 is commonly used for floor temperature sensing in floor heating applications. The thin casing allows for retrofit installation between tile spaces if necessary. This sensor is designed to provide a thermostat with the ability to maintain a minimum slab temperature, or help to limit the maximum slab temperature.

Features

10K thermistor
Commonly used for floor temperature sensing in floor heating applications
Compatible with tekmar thermostats that support slab sensing
Thin profile to simplify installation

Specifications

Item Number	079
Brand	Tekmar
Agency Approvals	CSA C US
Dimensions	3/16" OD x 1-1/2" (5 mm OD x 38 mm)
Operating Range	-58 to 140 degrees F (-50 to 60 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Sensor Material	316 stainless steel, 10 FT (3 m) 24 AWG, 300 volt PVC insulated Zipcord
