078 | Universal Sensor | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 078

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 078 Documents

Datasheet Installation Instructions More Info

Overview

Details for 078

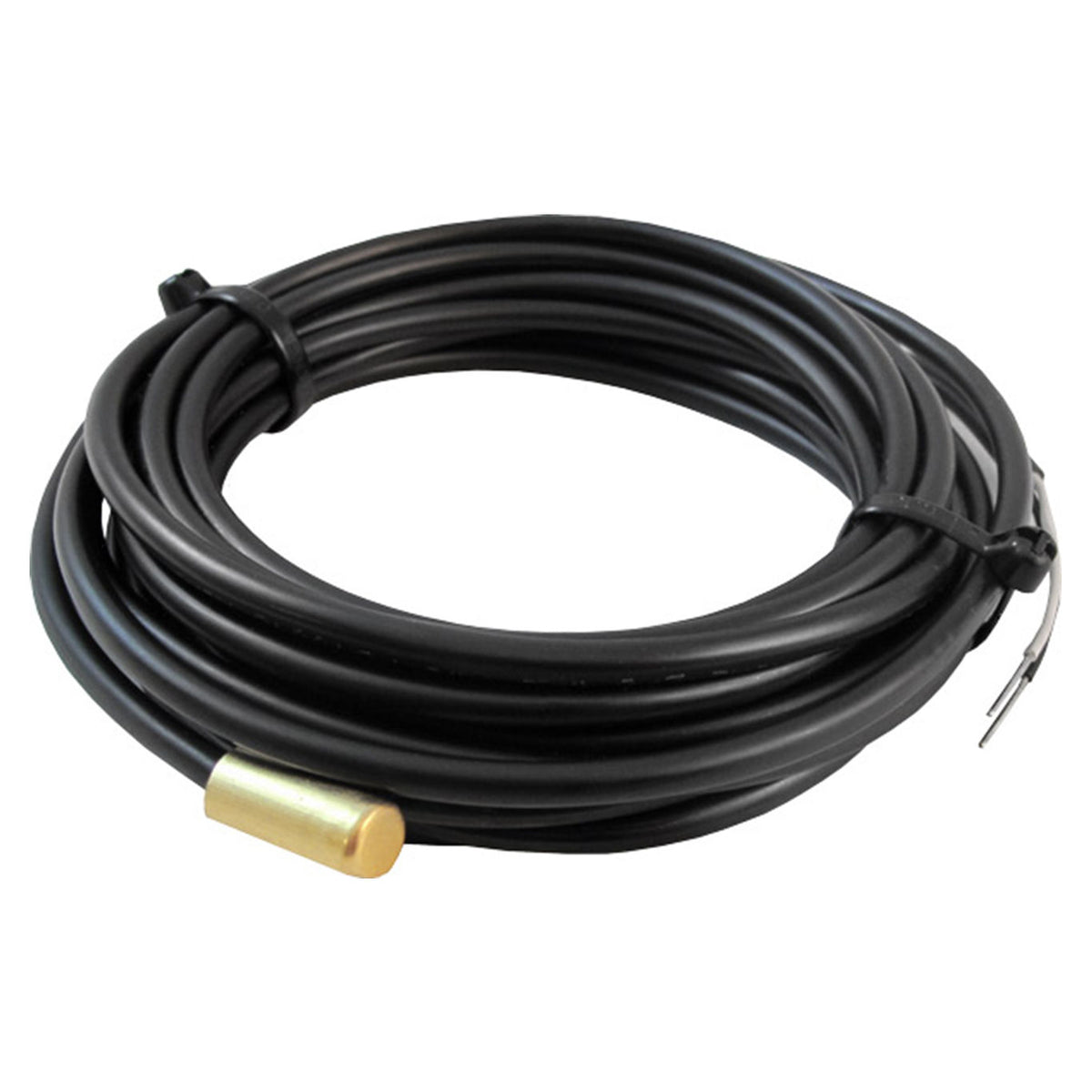

Universal Sensor

The Universal Sensor 078 is a temperature sensor with a stiff jacketed cable, making it a perfect choice for easy installation into conduit or domestic hot water tank temperature wells. The sensor can also be strapped to a pipe to measure supply or return temperatures.

Features

Easy installation into domestic hot water tank temperature wells
Sensor can also be strapped to a pipe to measure supply or return temperatures
Stiff jacketed cable for easy wiring in conduit
10K thermistor

Specifications

Item Number	078
Brand	Tekmar
Dimensions	3/8" OD x 3/4" (9.5 OD x 19 mm)
Operating Range	-40 to 221 degrees F (-40 to 105 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Sensor Material	Brass sleeve, 15 FT (4.6 m) 18 AWG, HDPE jacket, 300 V cable
