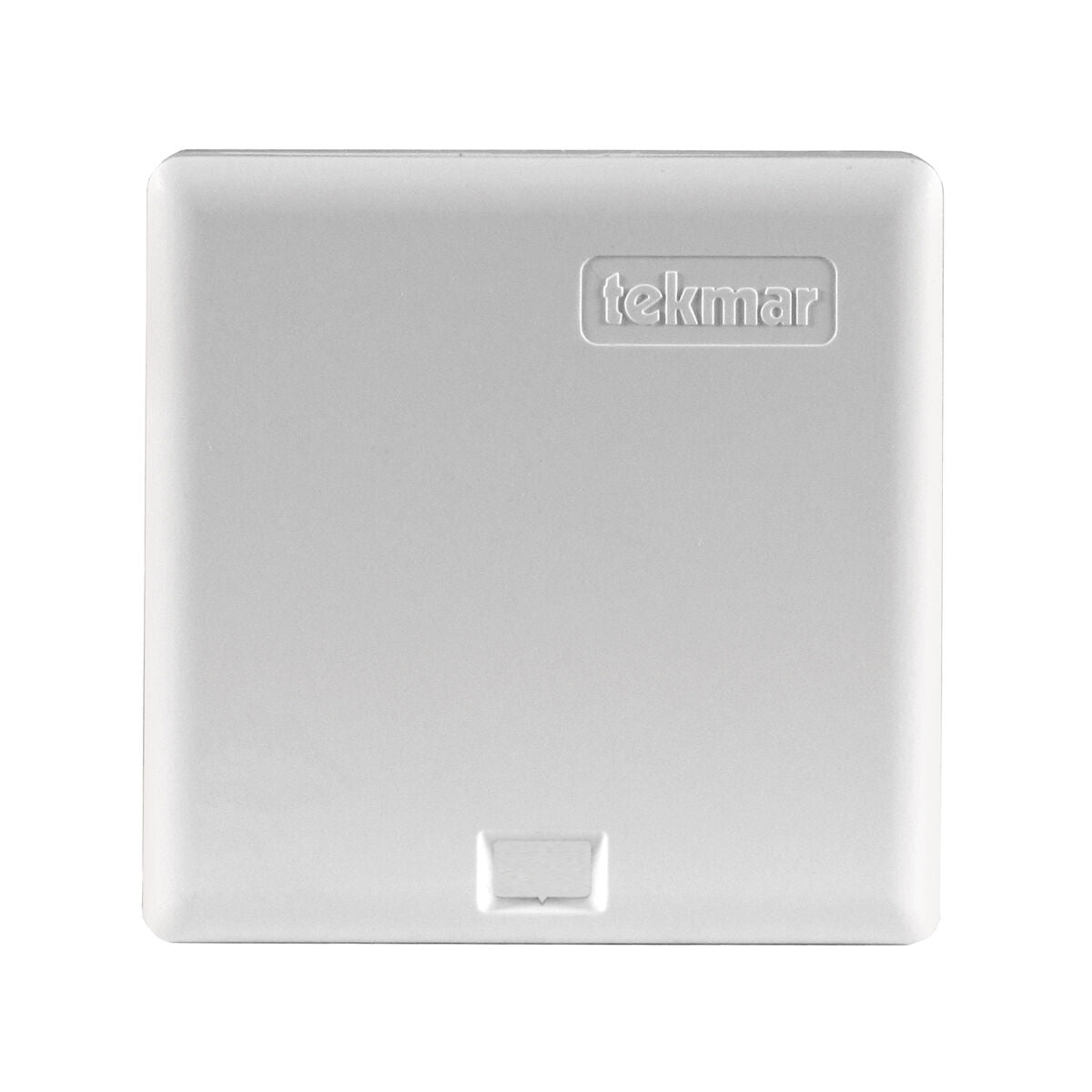

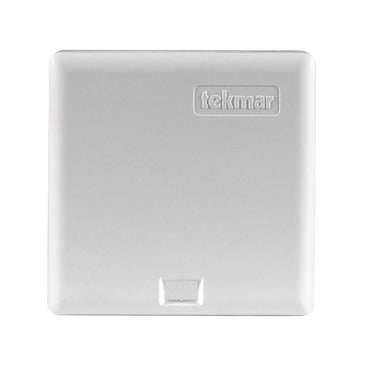

076 | Indoor Sensor | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 076

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 076 Documents

Datasheet Installation Instructions More Info

Overview

Details for 076

Indoor Sensor

The Indoor Sensor 076 is designed to provide remote temperature sensing when connected to a compatible thermostat, or control. It can be used in installations that use a boiler control but want Indoor Temperature Feedback for increased efficiency and comfort. This product can be connected to a control to provide temperature sensing at any location where it is installed. An optional Adaptor Plate 007 is available which allows the indoor sensor to be installed onto a single gang electrical box.

Features

Compatible with tekmar thermostats that support auxiliary sensing
To be installed onto a single gang electrical box
10K thermistor
Designed to provide remote temperature sensing

Specifications

Item Number	076
Brand	Tekmar
Agency Approvals	CSA C US
Dimensions	2-7/8" H x 2-7/8" W x 13/16" D (73 x 73 x 21 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Operating Range	-60 to 140 degrees F (-51 to 60 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
