073 | Slab Sensor | Tekmar

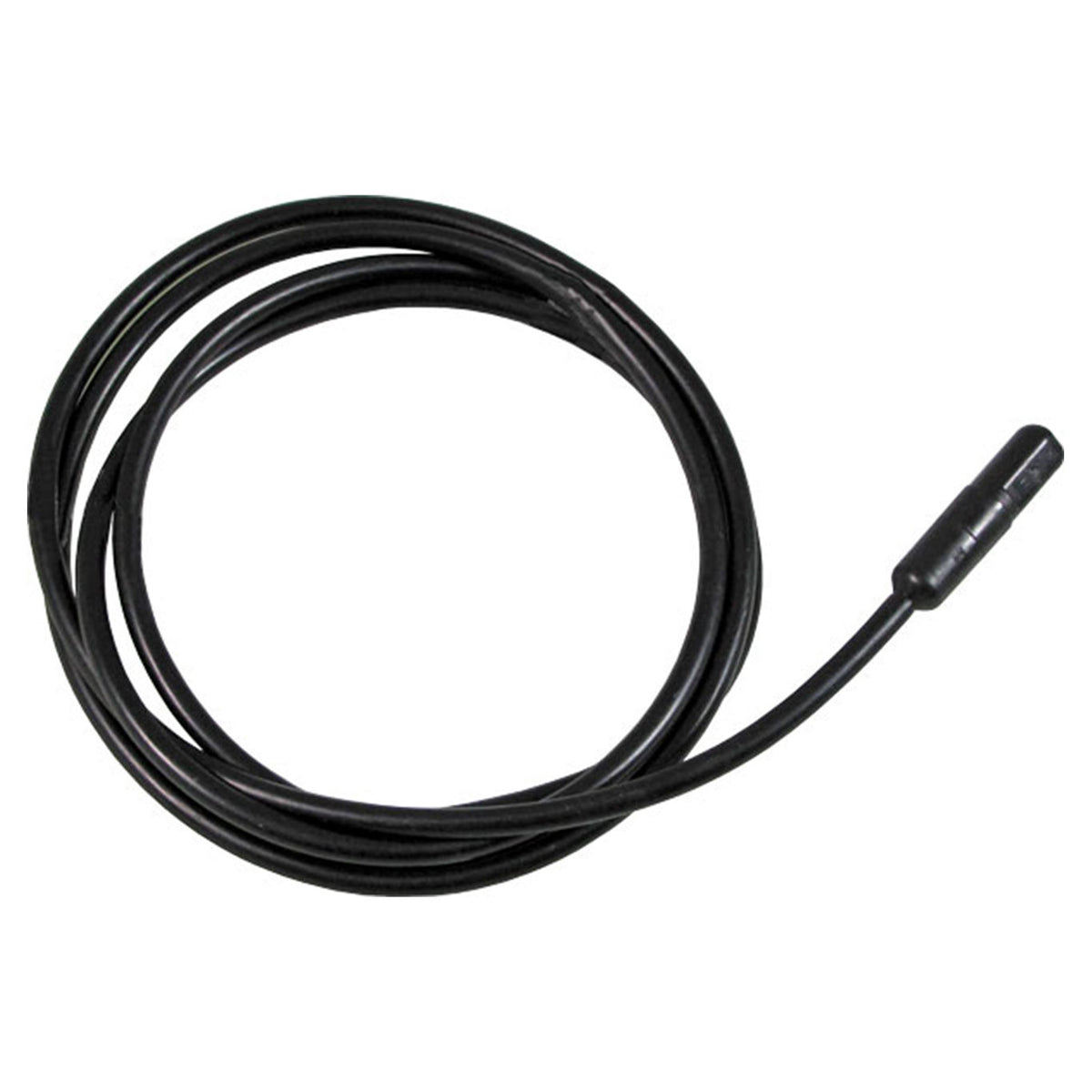

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 073

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 073 Documents

Datasheet Installation Instructions More Info

Overview

Details for 073

Slab Sensor

The Slab Sensor 073 is designed to measure temperature in outside snow melting slabs. It has a high density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete, as it is suitable for direct burial. This product is supplied with 40 FT (12 m) of 2-conductor cable.

Features

10K thermistor
Water resistant
40 ft (12 m) cable
High density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete

Specifications

Item Number	073
Brand	Tekmar
Agency Approvals	CSA C US
Dimensions	3/8" OD x 1 1/2" (10 mm OD x 38 mm)
Operating Range	-60 to 140 degrees F (-51 to 60 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Sensor Material	HDPE sleeve, 40 FT (12 m) HDPE jacketed wire
