070 | Outdoor Sensor | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 070

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 070 Documents

Datasheet Installation Instructions More Info

Overview

Details for 070

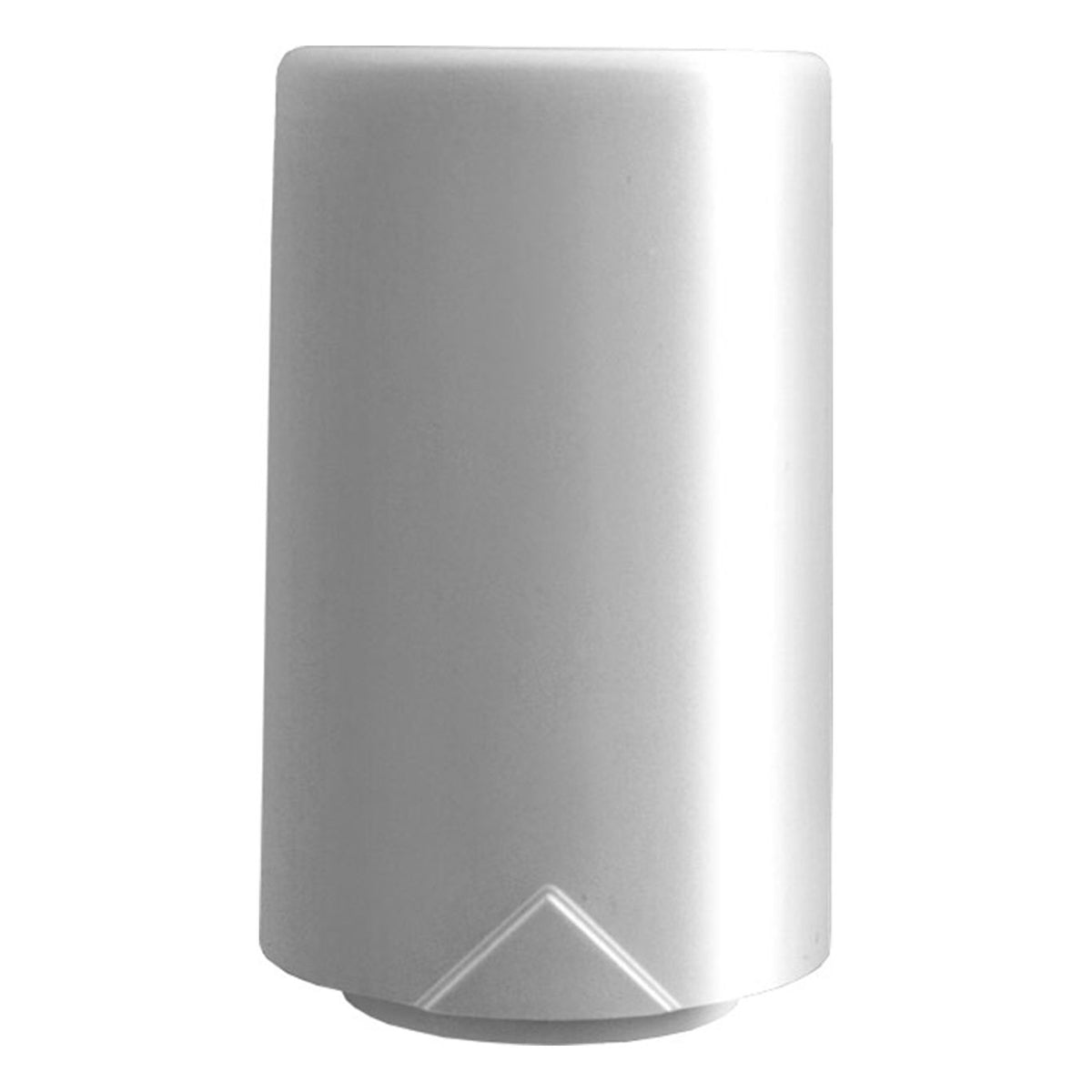

Outdoor Sensor

The Outdoor Sensor 070 is designed to provide accurate sensing of the outdoor temperature for display and control operation. Controls that operate based on Outdoor Temperature Reset use this product to provide outdoor reset operation. Many controls and thermostats can connect to the 070 to display the outdoor temperature on their LCD screens.

Features

10K thermistor
Sensor built-in
UV resistant enclosure
Back or bottom wiring access
Compact size
Removable bottom plug for easy conduit connection

Specifications

Item Number	070
Brand	Tekmar
Dimensions	2-5/8" H x 1-9/16" W x 1-11/16" D (67 x 40 x 43 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 2
Operating Range	-60 to 140 degrees F (-51 to 60 degrees C)
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
