VR65120-CB1-FS2A00 | Circulator Pump (Variable Speed) | Stainless Steel | 230V | Single Phase | 3.8A | Flanged | 120 GPM | 65ft Max Head | 175 PSI Max Press. | Series 1900e | Taco (OBSOLETE)
Documents and manuals
Taco VR65120-CB1-FS2A00 Documents
Overview
Details for VR65120-CB1-FS2A00
Circulator Pump (Variable Speed) | Stainless Steel | 230V | Single Phase | 3.8A | Flanged | 120 GPM | 65ft Max Head | 175 PSI Max Press. | Series 1900e
![](https://supplyfile.com/images/taco/badge_taco.png)

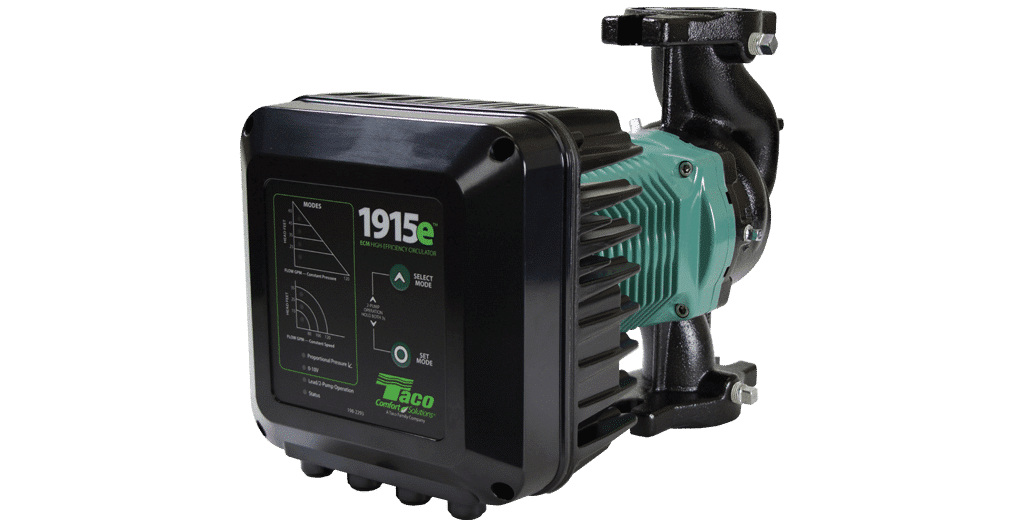

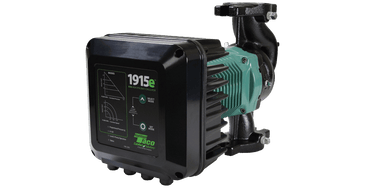

Self-Sensing, Close Coupled, Mechanically Sealed In-Line Pump
The 1915e® ECM High-Efficiency Circulators is a self-sensing, close coupled, mechanically sealed in-line pump that exceeds industry and efficiency standards with an advanced hydraulic design. It features a high-efficiency volute, ECM motor and integrated frequency drive. Simple yet versatile control options include constant pressure, constant speed, proportional pressure, 0-10Vdc and parallel pump alternation. These standard features combined with the intuitive user interface allow for quick start-ups achieving optimum system efficiency and maximum comfort. The 1915e® ECM High-Efficiency Circulators is available in Cast Iron for closed loop hydronic heating and cooling systems or Stainless Steel, NSF Commercial Hot Certified for DHW applications.
Performance Data
Max. Shut-off Head: 65′
Max. Flow: 120 GPM
Max.Operating Pressure: 175 PSI (12 bar)
Water Temp. Range: 36 to 230°F (2 to 110°C)
Ambient Temp. Range: 32 to 104°F (0 to 40°C)
Ambient Humidity: Less than 95% RH (Indoor Use Only)
Features
- Brushless, high-efficiency, ECM motor featuring high starting torque and soft start capability.
- Easy to program pump interface
- Self-sensing
- Multiple Operating Modes
- 4 Constant Pressure
- 3 Constant Speed
- 1 Proportional Pressure
- LED Status Light
- External Inputs/Outputs
- 0-10Vdc external speed control
- Remote enable
- Overload relay output
- Parallel pump control
- High quality mechanical seal
Applications
- Ductile Iron Model: Closed loop, pressurized Heating and Chilled Water HVAC Systems
- Stainless Steel Model: Potable water systems (DHW recirculation, pressure boosting)
Specifications
Item Number | VR65120-CB1-FS2A00 |
Brand | Taco |
Amps | 3.8A |
Connection | Flanged |
HP | |
Material | Stainless Steel |
Max Flow | 120 GPM |
Max Head Pressure | 65ft |
Max Pressue | 175 PSI |
Optional | |
Phase | Single Phase |
Pump Type | Circulator Pump (Variable Speed) |
RPM | |
Series | Series 1900e |
Type | Pump |
Voltage | 230V |
