Documents: VR1816-HY2-FC2A01

Datasheet Installation Instructions More Info

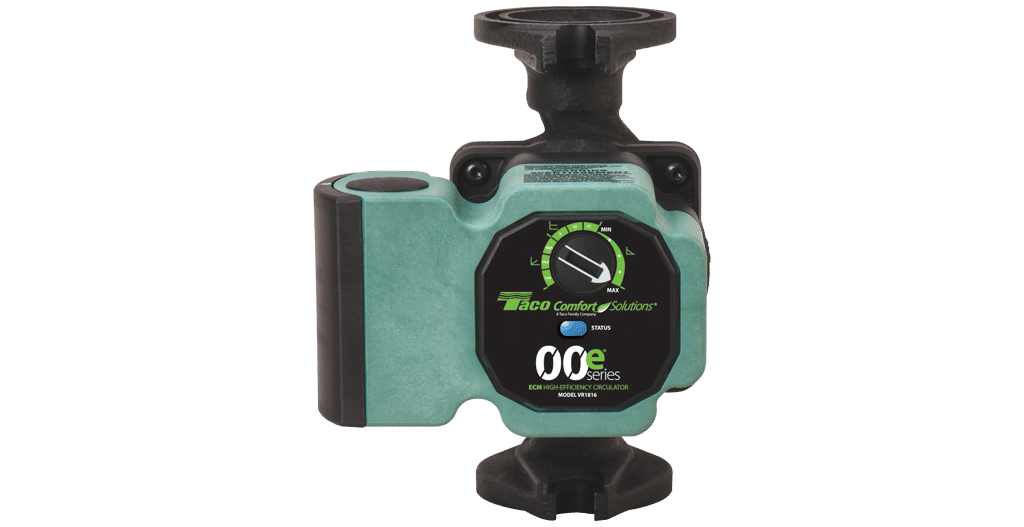

VR1816-HY2-FC2A01 | Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series VR1816 | Taco

Brand: TacoSKU: VR1816-HY2-FC2A01

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VR1816-HY2-FC2A01

Jump to: Overview & Specifications Reviews

Overview Details for VR1816-HY2-FC2A01

Variable speed ECM technology has come of age and with it, savings of up to 85% in electrical costs as compared to conventional circulators. The VR1816 ECM High-Efficiency Circulator (wet rotor) features infinitely variable fixed speed and 6 pressure presets to fit your job. It’s simple to install and intuitive to set up. Get into high-efficiency ECM savings with the turn of a dial – it’s efficiency uncomplicated.

Fixed Speed Mode

Fine tune the VR1816 ECM High-Efficiency Circulator flow rate to precisely match design load conditions. It is infinitely variable between min/max settings. Ideal for zoning with circulators.

Constant Pressure Mode

The VR1816 ECM High-Efficiency Circulator maintains a constant pressure differential in the system as the heating load increases or decreases. The best option for zoning with zone valves.

Proportional Pressure Mode

Maintains a variable pressure differential in the system as heating load increases or decreases. Flow will change in relationship to the change in pressure differential. The best option for panel radiators with TRV’s.

Performance Data

Flow Range: 0-16 GPM
Head Range (ft): 0-18′
Max. Operating Pressure: 125 PSI
Max. Water Temp.: 230°F (110°C)
Min. Water Temp.: 36°F (2°C)
Voltage: 120V, 60 Hz Single phase
Operating Power: 4W-44W
Max. AMP Rating: 0.54

Features

Applications

Zoning with Circulator
Zoning with Valves
Panel Radiators with Thermostatic Radiator Valves (TRV)
Closed Loop Systems Only
Indoor Use Only
Water or maximum of 50% water/glycol solution

Specifications

Item Number	VR1816-HY2-FC2A01
Brand	Taco
Amps	0.54A
Connection	Flanged
HP
Material	Cast Iron
Max Flow	16 GPM
Max Head Pressure	18ft
Max Pressue	125 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump (Variable Speed)
RPM
Series	Series VR1816
Type	Pump
Voltage	115V
