VM1816-HY2-FC2A00 | Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series 0015e3 | Taco
Documents and manuals
Taco VM1816-HY2-FC2A00 Documents
Overview
Details for VM1816-HY2-FC2A00
Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series 0015e3

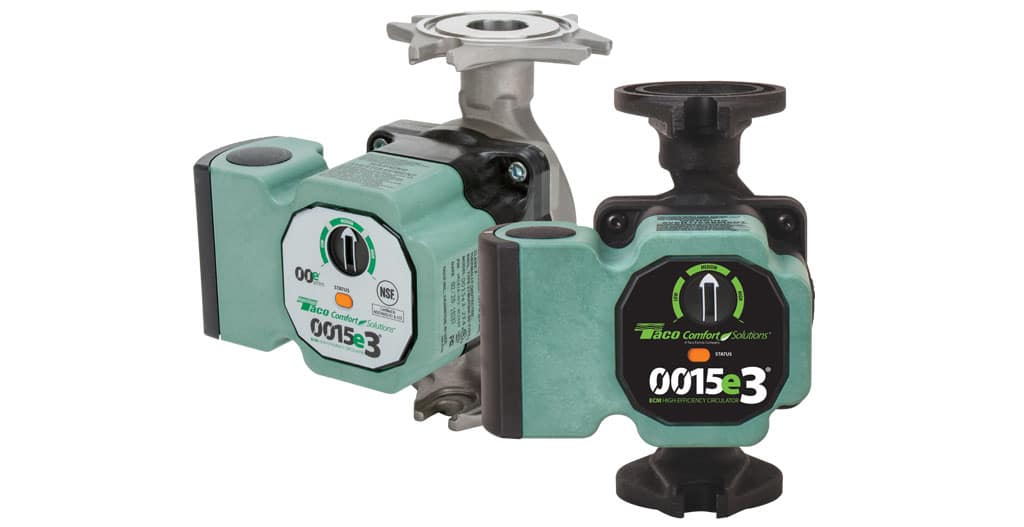

0015e3 ECM High-Efficiency Circulator
The Taco 0015e3® ECM High-Efficiency Circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. With 3 easy settings, the 0015e3® ECM High-Efficiency Circulator delivers performance, reliability and ease of installation that made the 00® famous. Install it, forget it!®
Performance Data
Flow Range: 0-16 GPM
Head Range (ft): 0-18′
Max. Operating Pressure:
– Cast Iron: 125 psi (8.6 bar)
– Stainless Steel: 150 psi (10 bar)
Max. Water Temp.: 230°F (110°C)
Min. Water Temp.: 36°F (2°C)
Voltage: 120V, 60 Hz Single phase
Max. Operating Power: 44W
Max. AMP Rating: 0.54
Features
- BIO Barrier® protects the pump from system contaminants.(Cast Iron only)
- SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
- High-efficiency ECM motor uses up to 85% less electricity
- 3 Easy Settings:
• LOW (5 ft. head)
• MEDIUM (10 ft. head)
• HIGH (18 ft. head) - Dual electrical knockouts
- 6″ stranded wire leads for no-fumble wiring
- Double Insulated. No ground necessary.
- Integral Flow Check (IFC®) included
- Whisper Quiet Operation
Applications
Closed loop hydronic systems
Open loop potable water
Domestic water recirculation
Indoor use only
Water or maximum of 50% water/glycol solution
Specifications
| Item Number | VM1816-HY2-FC2A00 |
| Brand | Taco |
| Amps | 0.54A |
| Connection | Flanged |
| HP | |
| Material | Cast Iron |
| Max Flow | 16 GPM |
| Max Head Pressure | 18ft |
| Max Pressue | 125 PSI |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump (Variable Speed) |
| RPM | |
| Series | Series 0015e3 |
| Type | Pump |
| Voltage | 115V |
