SD050040-5 | SUCTION DIFFUSER | 5 X 4 | 125# FLANGED | CAST VANES | Taco

SUCTION DIFFUSER | 5 X 4 | 125# FLANGED | CAST VANES

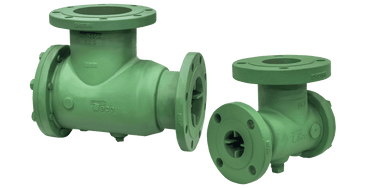

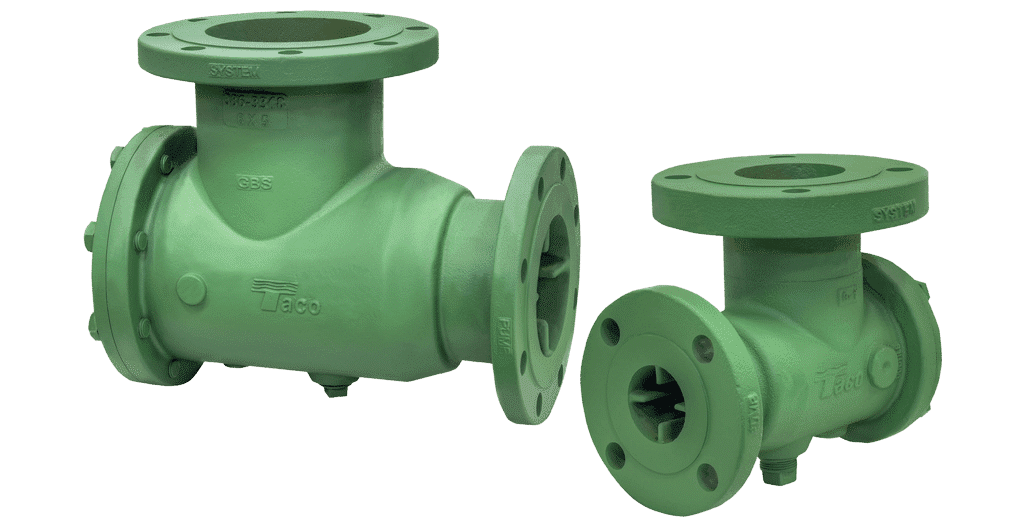

The Taco Suction Diffuser Rear Strainer Pullout (RSP) incorporates numerous features into one device that simplifies installations and reduces installation costs. It is a flow straightening device that provides maximum flow efficiency at the suction inlet of the pump while at the same time reducing space and fitting requirements and eliminating the need for an equivalent length of ten pipe diameters of straight run on the suction side of the pump. It is an elbow (and in some cases a reducing elbow) with a built-in strainer that is easily maintained and will provide years of trouble free system performance.

The Taco Suction Diffuser Rear Strainer Pullout (RSP) is available in a wide variety of sizes.

Suction Diffuser Rear Strainer Pullout (RSP) Categories:

Please note: The straightening vanes of the -5 are now cast into the Suction Diffuser Rear Strainer Pullout (RSP) body at the outlet. The appearance, performance and piping dimensions of the -5 are identical to the corresponding -4 models.

Literature for both -4 and -5 designs will remain on the website until all -4 stock is depleted, at which time the -4 literature will move to the discontinued products section.

Performance Data

Features

Applications
