Documents: L1034-Y6CI1-FHA1

Datasheet Replacement Parts Installation Instructions More Info

L1034-Y6CI1-FHA1 | Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 250 PSI Max Press. | Integral Flow Check | Series LoadMatch | Taco

Brand: TacoSKU: L1034-Y6CI1-FHA1

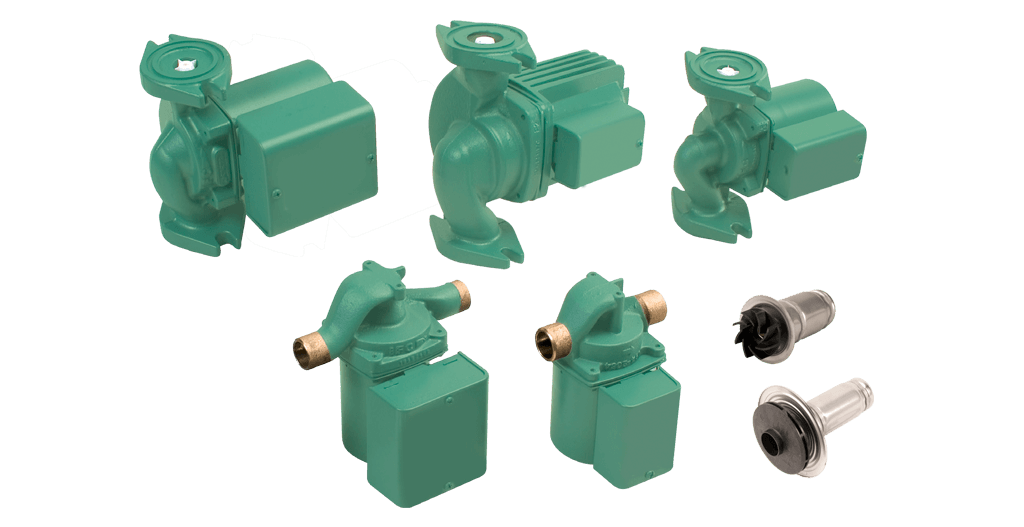

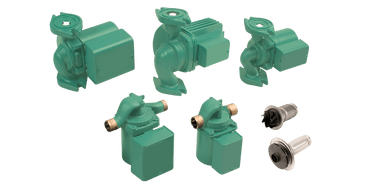

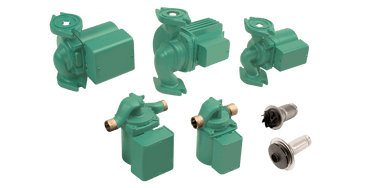

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to L1034-Y6CI1-FHA1

Jump to: Overview & Specifications Reviews

Overview Details for L1034-Y6CI1-FHA1

LoadMatch Circulators

Taco LoadMatch ^® Circulators are designed for quiet, efficient operation on LoadMatch ^® Fan Coil Heating and Cooling Systems. Each circulator includes a removable Integral Flow Check (IFC ^®) to prevent gravity flow and reduce installation costs. An anti-condensate baffle prevents the build up of condensate on the motor windings when pumping chilled water. The unique, field serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design of the LoadMatch ^® Circulators provides unmatched reliability.

Performance Data

Min. Fluid Temp.: 32º F (0º C)
Max. Fluid Temp. Cast Iron or Stainless Steel: 230º F (110º C)
Max. Fluid Temp. Bronze: 220º F (104º C)
Max. Working Pressure: 200 PSI
Available in 115V, 230V or 277V voltages
Optional 0-10V variable speed control
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged, 3/4″ Sweat

Features

Integral Flow Check (IFC)–Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
Improved Performance vs. In-Line Flow Checks
Exclusive Anti-Condensate Baffle (ACB)—Protects motor windings against condensate build-up in chilled water systems
Unique Replaceable Cartridge Design—Field Serviceable
Unmatched Reliability—Maintenance Free
Quiet, Efficient Operation
Direct Drive – Low Power Consumption
Standard High Capacity Output
Compact Design
Self Lubricating
No Mechanical Seal

Applications

LoadMatch^® Fan Coil Heating and Cooling Systems

Specifications

Item Number	L1034-Y6CI1-FHA1
Brand	Taco
Amps	2A
Connection	Flanged
HP	1/6 HP
Material	Cast Iron
Max Flow
Max Head Pressure
Max Pressue	250 PSI
Optional
Optional	Integral Flow Check
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250 RPM
Series	LoadMatch
Type	Pump
Voltage	115V
