2400-60Y-3P | Circulator Pump | Cast Iron | 1/6 HP | 230V | Single Phase | 1A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

Brand: TacoSKU: 2400-60Y-3P

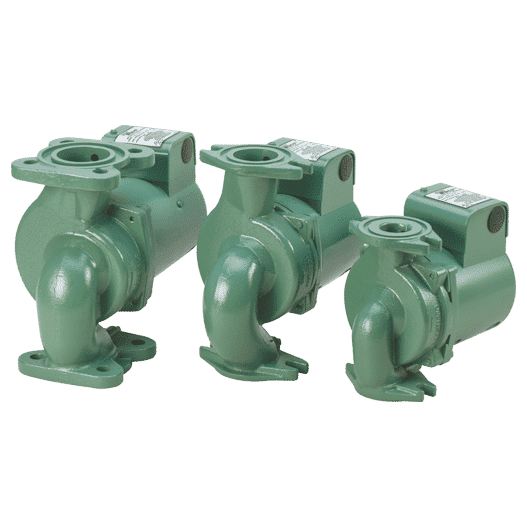

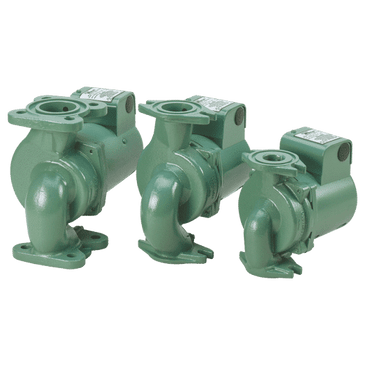

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2400-60Y-3P

Overview & Specifications Reviews Parts & Accessories

Overview Details for 2400-60Y-3P

Circulator Pump | Cast Iron | 1/6 HP | 230V | Single Phase | 1A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″

Features

Compact, space saving design
Powerful close-coupled, maintenance free motor
Superior efficiency, high starting torque
Permanently lubricated, sealed for life bearings
Rugged ½ ” Stainless Steel Shaft
Carbon/Silicon-Carbide mechanical seal for long life
Universal flange to flange dimensions — Ideal for retrofits
Anti-Condensate design for chilled water
Dual electrical knock-outs
Dual pressure taps, suction/discharge

Applications

Hydronic heating
In-Floor Radiant
Snow Melt
High Pressure Drop Boilers
Outdoor Wood Boilers
Chilled Water Cooling
Geothermal Heat Pumps
Primary/Secondary Loops
Hydro Air Fan Coils
Domestic Water Recirculation Systems

Specifications

Item Number	2400-60Y-3P
Brand	Taco
Amps	1A
Connection	Flanged
HP	1/6 HP
Material	Cast Iron
Max Flow	90 GPM
Max Head Pressure	46ft
Max Pressue	150 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3450 RPM
Series	Series 2400
Type	Pump
Voltage	230V
