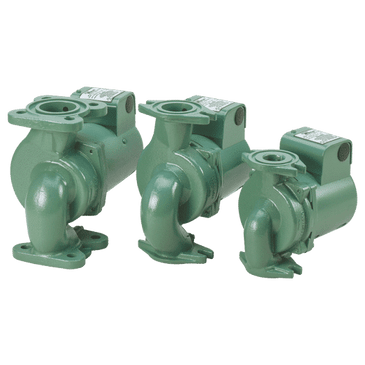

2400-45Y-3P | Circulator Pump | Cast Iron | 1/3 HP | 230V | Single Phase | 1.7A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco
Documents and manuals
Taco 2400-45Y-3P Documents
Overview
Details for 2400-45Y-3P
Circulator Pump | Cast Iron | 1/3 HP | 230V | Single Phase | 1.7A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400
For Medium-to-High Flow/Head Application
Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.
Performance Data
Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″
Features
- Compact, space saving design
- Powerful close-coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged ½ ” Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions — Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
Applications
- Hydronic heating
- In-Floor Radiant
- Snow Melt
- High Pressure Drop Boilers
- Outdoor Wood Boilers
- Chilled Water Cooling
- Geothermal Heat Pumps
- Primary/Secondary Loops
- Hydro Air Fan Coils
- Domestic Water Recirculation Systems
Specifications
| Item Number | 2400-45Y-3P |
| Brand | Taco |
| Amps | 1.7A |
| Connection | Flanged |
| HP | 1/3 HP |
| Material | Cast Iron |
| Max Flow | 90 GPM |
| Max Head Pressure | 46ft |
| Max Pressue | 150 PSI |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3450 RPM |
| Series | Series 2400 |
| Type | Pump |
| Voltage | 230V |
