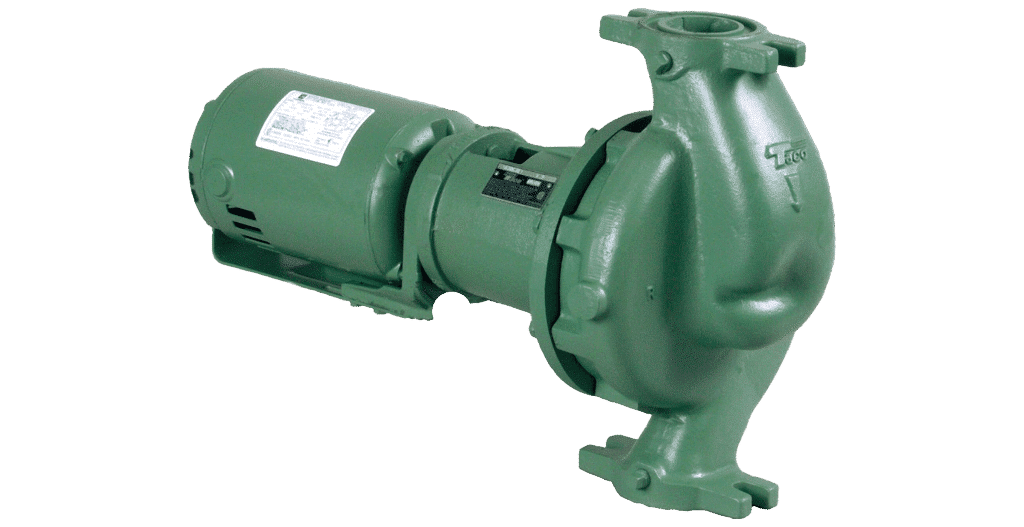

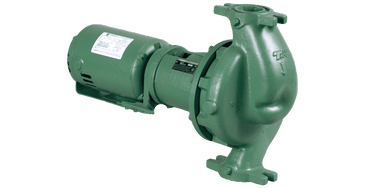

1634 ES | Circulator Pump | Cast Iron | 1 HP | 115V | Single Phase | 0.37A | 1750 RPM | Flanged | 125 PSI Max Press. | Series 1600 | Taco

Brand: TacoSKU: 1634 ES

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1634 ES

Jump to: Overview & Specifications Reviews

Overview Details for 1634 ES

Designed for Reliable Performance and Easy Service

Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 Series In-Line Pumps cool-bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series In-Line Pumps are available in 15 models ranging in performance capacity from 20 to 200 GPM with head capacities up to 68 ft.

Performance Data

Flow Range: 20 – 200 GPM
Head Range: 10′ – 68′
Working Pressure: 175 PSI with cold water, 125 PSI at rated temperatureTemperature: 250°F Standard, 300°F with Hi-Temp Seal
HP: ¼- 3
Sizes: 1 ½” – 2″

Features

Cartridge Assembly
One Piece Enclosed Impeller
Cupro-Nickel Shaft Sleeve
Standard Mechanical Seal
Flexible Coupler
Resilient Mounted Motor

Applications

LoadMatch^®Systems
Air Conditioning Systems
Recirculation
Booster Service
Heating Systems
Laundry Equipment
Cooling Towers
Golf Courses
Dry Cleaning Plants
Livestock Watering
Bottle Washers
Lawn Sprinklers

Specifications

Item Number	1634 ES
Brand	Taco
Amps	0.37A
Connection	Flanged
HP	1 HP
Material	Cast Iron
Max Flow
Max Head Pressure
Max Pressue	125 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump
RPM	1750 RPM
Series	Series 1600
Type	Pump
Voltage	115V
