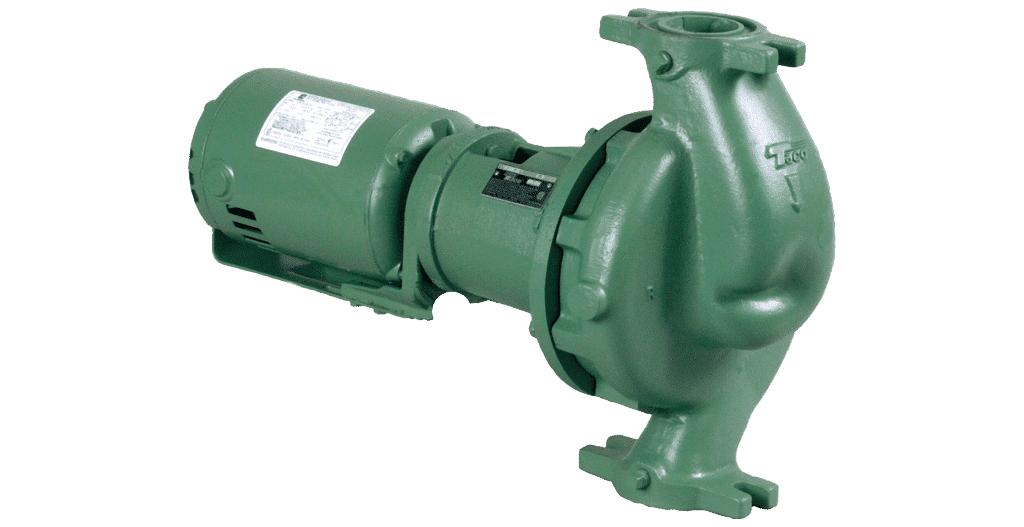

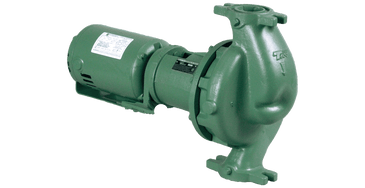

1630-S47 | Circulator Pump | Bronze | 1/2 HP | 115V | Single Phase | 0.37A | 1450 RPM | Flanged | 125 PSI Max Press. | Series 1600 | Taco (OBSOLETE)
Documents and manuals
Taco 1630-S47 Documents
Overview
Details for 1630-S47
Circulator Pump | Bronze | 1/2 HP | 115V | Single Phase | 0.37A | 1450 RPM | Flanged | 125 PSI Max Press. | Series 1600
Designed for Reliable Performance and Easy Service
Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 Series In-Line Pumps cool-bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series In-Line Pumps are available in 15 models ranging in performance capacity from 20 to 200 GPM with head capacities up to 68 ft.
Performance Data
Flow Range: 20 – 200 GPM
Head Range: 10′ – 68′
Working Pressure: 175 PSI with cold water, 125 PSI at rated temperatureTemperature: 250°F Standard, 300°F with Hi-Temp Seal
HP: ¼- 3
Sizes: 1 ½” – 2″
Features
- Cartridge Assembly
- One Piece Enclosed Impeller
- Cupro-Nickel Shaft Sleeve
- Standard Mechanical Seal
- Flexible Coupler
- Resilient Mounted Motor
Applications
- LoadMatch®Systems
- Air Conditioning Systems
- Recirculation
- Booster Service
- Heating Systems
- Laundry Equipment
- Cooling Towers
- Golf Courses
- Dry Cleaning Plants
- Livestock Watering
- Bottle Washers
- Lawn Sprinklers
Specifications
| Item Number | 1630-S47 |
| Brand | Taco |
| Amps | 0.37A |
| Connection | Flanged |
| HP | 1/2 HP |
| Material | Bronze |
| Max Flow | |
| Max Head Pressure | |
| Max Pressue | 125 PSI |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 1450 RPM |
| Series | Series 1600 |
| Type | Pump |
| Voltage | 115V |
