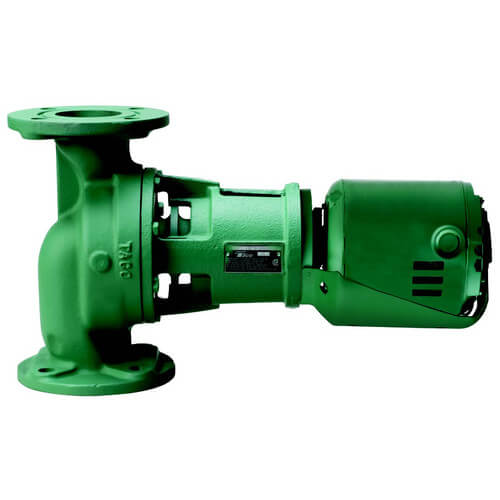

133E3E20133119 | Circulator Pump | Cast Iron | 3/4 HP | 115/230V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 133 | Taco (OBSOLETE)
Documents and manuals
Taco 133E3E20133119 Documents
Overview
Details for 133E3E20133119
Circulator Pump | Cast Iron | 3/4 HP | 115/230V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 133
With millions in service and backed by more than five decades of experience, Taco 121-138 Series In-Line Circulators have earned their reputation for proven performance and dependable, quiet operation. These 121-138 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in a full range of residential and commercial hydronic and solar systems. You can also use the 121-138 Series In-Line Circulators for zoning large installations, for primary-secondary systems and for parallel pumping designs. These rugged workhorses are available in sizes and configurations to meet all your needs, including stainless steel construction for fresh water service.
Performance Data
Flow Range: 0 – 160 GPM
Head Range: 0′ – 40′
Max. Fluid Temp.: 250°F
Max. Operating Pressure: 150 PSI
HP: ¼ – 1
Connection Sizes: 2 ½” – 3″
Features
- Proven Performance
- Dependable, Quiet Operation
- Unique Universal Cartridge Design for Long Bearing Life
- Carbon Ceramic Mechanical Seal
- Rugged Resilient Mounted Motor
- 100% Factory Tested
- Easy, Low-Cost Service
- Available in Stainless Steel Construction for Domestic Hot Water Applications
Applications
- Residential Commercial Hydronic Heating and Chilled Water
- Commercial Hydronic and Solar Systems
- Domestic Hot Water Heating and Recirculation
Taco In-Line Circulators are designed to efficiently circulate heated or chilledwater in residential or light commercial Hydronic Systems. These circulatorsmay also be used for zoning large installations and are available in bronze orstainless steel construction for domestic hot water applications.In-Line Circulators demonstrate proven performance, dependablity, quietoperation and long lasting performance.
Design Pump Series:
Applications
Designed to efficiently circulateheated or chilled water in largeresidential and commercialHydronic Systems. Ideal forprimary-secondary systems, aswell as parallel pumping designs.Available in Stainless Steelconstruction for fresh water service.
Features
Proven Performance: In-LineCartridge Design Pumps arebacked by years of Taco experiencein design and manufacture ofcirculators. Hundreds ofthousands are in service.
Dependable, Quiet Operation:
In-Line Cartridge Design Pumpsoffer quiet dependable pumpingpower and long lasting performance.Ideal for heating and/orair conditioning systems requiringhigh head performance, pressureboosting, and recirculation systemswith relatively low volume.
Unique Cartridge Design:
Replaceable "cooler running"bearing cartridge extendsbearing life. With permanentlysealed grease lubricated ballbearings it is virtuallymaintenance free.
Built to Last
Cartridge Bearing AssemblyCartridge design isolates thebearings from the effects ofsystem fluid temperatures whichgreatly extends bearing life.
Specifications
| Item Number | 133E3E20133119 |
| Brand | Taco |
| Amps | |
| Application | Heating |
| Connection Size | 3" |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-130 |
| Head Range (ft.) | 0-30 |
| Hertz | 60 |
| Horse Power | 3/4 |
| HP | 3/4 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 130 |
| Max Flow | |
| Max Head (Ft) | 30 |
| Max Head Pressure | |
| Max Pressue | 125 PSI |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 1725 |
| RPM | 1725 RPM |
| Series | Series 133 |
| Type | Pump |
| Voltage | 115/230V |
| Voltage | 230v |
| Warranty | 1 Year |
