006-BC7-1PNP | 006 Plumb n' Plug Pump w/ Line Cord, Analog Timer, & IFC, 1/40 HP (1/2" Sweat) | Taco
Documents and manuals
Taco 006-BC7-1PNP Documents
Overview
Details for 006-BC7-1PNP

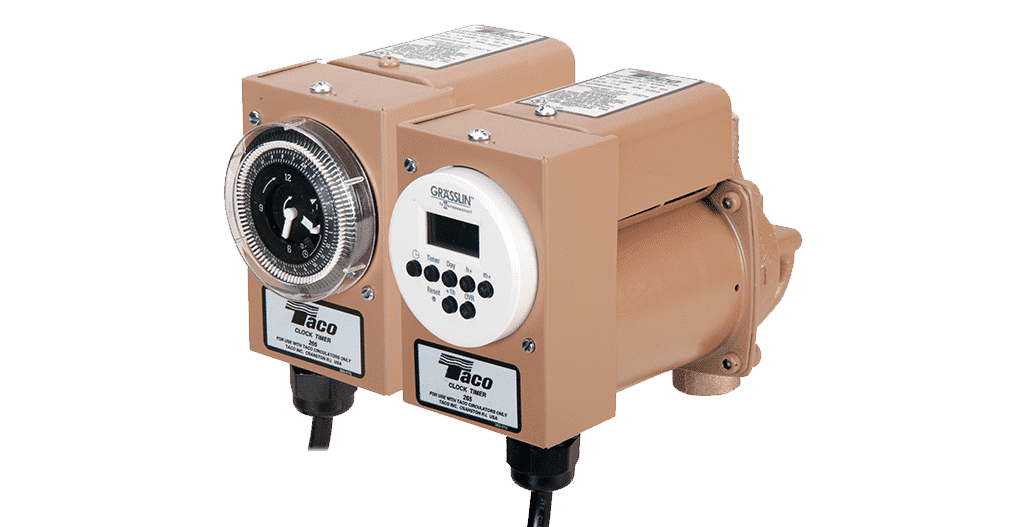

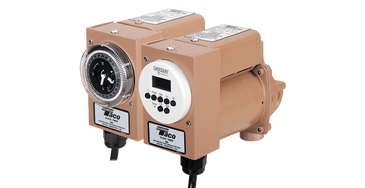

006 Plumb n' Plug Pump w/ Line Cord, Analog Timer, & IFC, 1/40 HP (1/2" Sweat)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Taco's Plumb n' Plug cartridge circulators are specially designed to conserve water, all while increasing comfort. This pump is able to cut down the time it takes hot water to arrive at outlet fixtures, by regularly re-circulating hot water through the system. On average, a residence is capable of saving up to 25 gallons of water every day, or up to 9,000 gallons a year! Thanks to the factory pre-wired 6 foot line cord, installation is a breeze. The 006-BC4-PNP is ideal for systems that use 200 to 400 total feet (supply and return) of 3/4 inch piping. Simply plumb-it-in then plug-it-in! Installation of isolation valve, pipe insulation and flow check are highly recommended.
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Features:
- Factory Installed 6' Line Cord
- UL Listed
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Bronze Construction
Application:
For recirculation systems setup for constant circulation or with an optional aquastat control, use Plumb n' Plug with line cord only.
Specifications
| Item Number | 006-BC7-1PNP |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.52A |
| Connection Size | 1/2" |
| Connection Type | Sweat |
| Connection | Sweat (1/2") |
| Flow Range (GPM) | 0-11.5 |
| Head Range (ft.) | 0-9.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Bronze |
| Max Flow (GPM) | 11.5 |
| Max Flow | 9 GPM |
| Max Head (Ft) | 9.5 |
| Max Head Pressure | 8.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Optional | Integral Flow Check |
| Phase | 1 |
| Phase | Single Phase |
| Product Type | Recirculator Pump |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F - 220°F |
| Type | Dedicated |
| Type | Pump |
| Voltage | 115v |
| Weight (lbs) | 7 lbs |
