Details for 006-BC4-4PNP

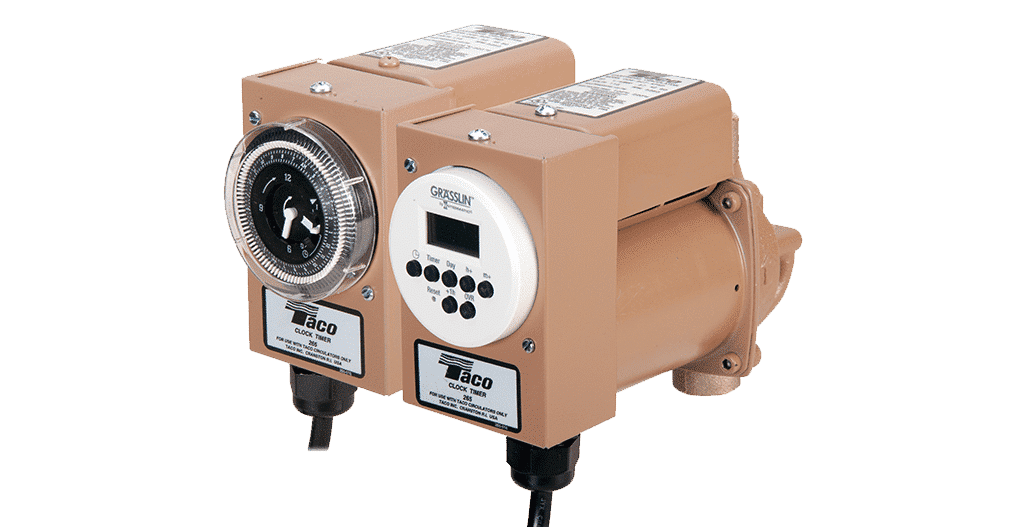

006 Plumb n' Plug Pump w/ Digital Timer, 1/40 HP (1/2" Sweat)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
The Taco Plumb n' Plug with digital timer allows up to 8 precise On/Off program settings to fit any homeowners' schedule. Multiple settings allow for a different weekday/weekend run times. Run time intervals can be set as short as 1 minute to maximize energy savings. Easy-to-use clock face and large LCD display make settings simple. Its on board capacitor retains settings in memory for up to 100 hours during power outages
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Features:
- Digital timer, 7-day programmable
- Large LCD display
- Up to 8 On/Off program settings
- Easy-to-use program buttons
- On/Off intervals as short as 1 minute
- 100 hour capacitor backup, saves settings
For recirculation systems setup for constant circulation or with an optional aquastat control, use Plumb n' Plug with line cord only.
Specifications
| Item Number | 006-BC4-4PNP |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.52A |
| Connection Size | 1/2" |
| Connection Type | Sweat |
| Connection | Sweat (1/2") |
| Flow Range (GPM) | 0-11.5 |
| Head Range (ft.) | 0-9.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Bronze |
| Max Flow (GPM) | 11.5 |
| Max Flow | 10 GPM |
| Max Head (Ft) | 9.5 |
| Max Head Pressure | 9ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Product Type | Recirculator Pump |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F - 220°F |
| Type | Dedicated |
| Type | Pump |
| Voltage | 115v |
| Weight (lbs) | 7 lbs |
