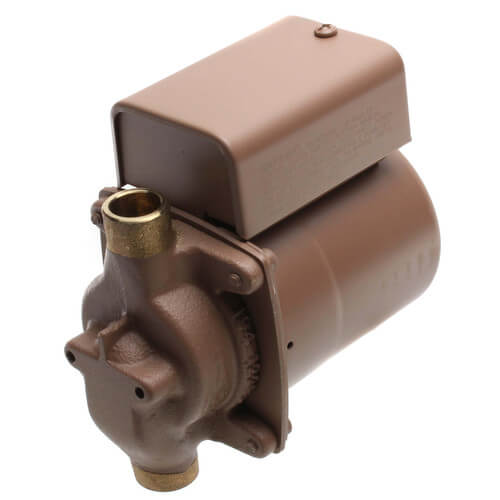

003-BC4 | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.43A | 3250 RPM | Sweat (1/2") | 7 GPM | 4.5ft Max Head | 125 PSI Max Press. | Series 003 | Taco
Documents and manuals
Taco 003-BC4 Documents
Overview
Details for 003-BC4
Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.43A | 3250 RPM | Sweat (1/2") | 7 GPM | 4.5ft Max Head | 125 PSI Max Press. | Series 003
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
The Taco 003 is designed for circulating hot or chilled fresh water in open or closed loop,lower flow applications. Flow characteristics are ideal for Domestic HotWater Recirculation,Heat Recovery units,Water Source Heat Pumps, and PotableWater systems. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing theentire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
This item abides by the 2014 low lead requirements
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assy. Complete: 003-001RP
Specifications
| Item Number | 003-BC4 |
| Brand | Taco |
| Amperage | 0.43 |
| Amps | 0.43A |
| Application | Heating |
| Connection Size | 1/2" |
| Connection Type | Sweat |
| Connection | Sweat (1/2") |
| Flow Range (GPM) | 0-7 |
| Head Range (ft.) | 0-4.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Bronze |
| Max Flow (GPM) | 7 |
| Max Flow | 7 GPM |
| Max Head (Ft) | 4.5 |
| Max Head Pressure | 4.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 003 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
