003-B4-2PNP | CIRCULATOR BRONZE 3/4" SWEAT PNP DIGITAL | Taco

Taco | 003-B4-2PNP

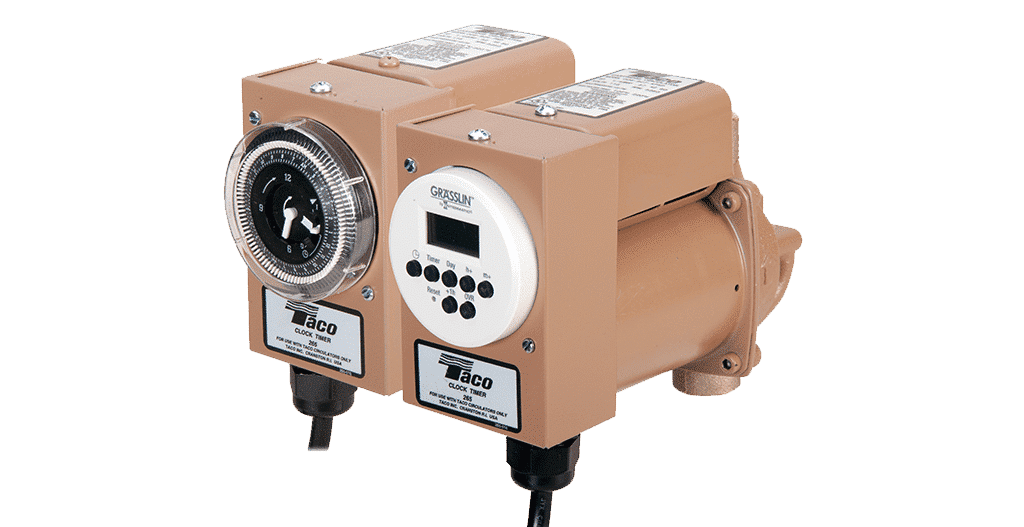

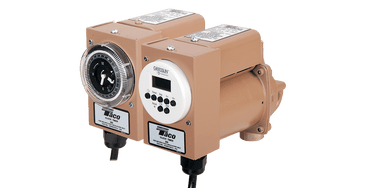

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for 003-B4-2PNP

CIRCULATOR BRONZE 3/4" SWEAT PNP DIGITAL

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Specifications

Item Number 003-B4-2PNP
Brand Taco
Amps 0.43A
Connection Sweat (3/4")
HP 1/40 HP
Material Bronze
Max Flow 7 GPM
Max Head Pressure 4.5ft
Max Pressue 125 PSI
Optional
Phase Single Phase
Pump Type Circulator Pump
RPM 3250 RPM
Series Series 003
Type Pump
Voltage 115V
