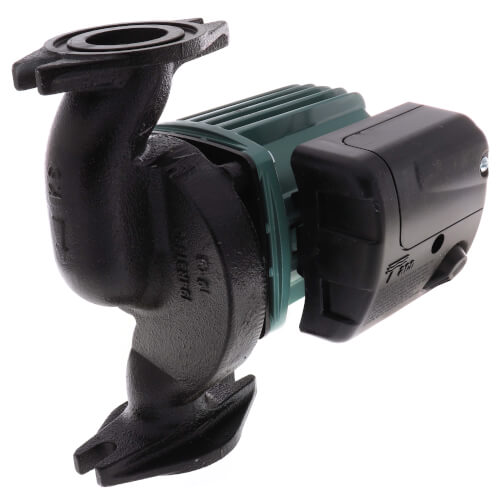

0012-MSF2-IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0012 | Taco
Documents and manuals
Taco 0012-MSF2-IFC Documents
Overview
Details for 0012-MSF2-IFC
Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0012
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The 0012 3-Speed pump is a direct replacement for Grundfos,UPS43-44 3-Speed. Designed for high flow / low head applications.It’s ideal for large BTU boilers, primary boiler loops and largerecirculation systems. The Stainless Steel 0012 should be usedfor open, potable water applications.
The 3-speed circulator features aremovable, uni-body Integral Flow Check(IFC) that maximizes flow and preventsgravity flow - even in the tallestbuildings. Wiring is a snap thanks to anew extra roomy, easy access capacitorbox.
Features:
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy-Duty construction for longer life
- Removable high-flow Integral Flow Check (IFC)
- Prevents gravity flow
- Reduces installation costs
- Improves pump performance
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
- Cast Iron or St. Steel, flanged construction
Specifications
| Item Number | 0012-MSF2-IFC |
| Brand | Taco |
| Amperage | 1.6 |
| Amps | 1.65A |
| Application | Heating |
| Connection Size | 1-1/2" |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-45 |
| Head Range (ft.) | 0-15 |
| Hertz | 60 |
| Horse Power | 1/6 |
| HP | 1/8 HP |
| Material | Cast Iron |
| Max Flow (GPM) | 45 |
| Max Flow | 42 GPM |
| Max Head (Ft) | 15 |
| Max Head Pressure | 14ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Max Temp (F) | 210°F |
| Min Temp (F) | 40°F |
| Optional | Integral Flow Check |
| Optional | Multi Speed |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 0012 |
| Speeds | 3 |
| Type | 3-Speed Pump |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
