0012-F4-4 | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged (1-1/2" rotated kit included) | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012 | Taco

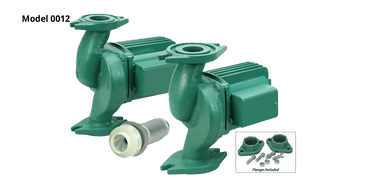

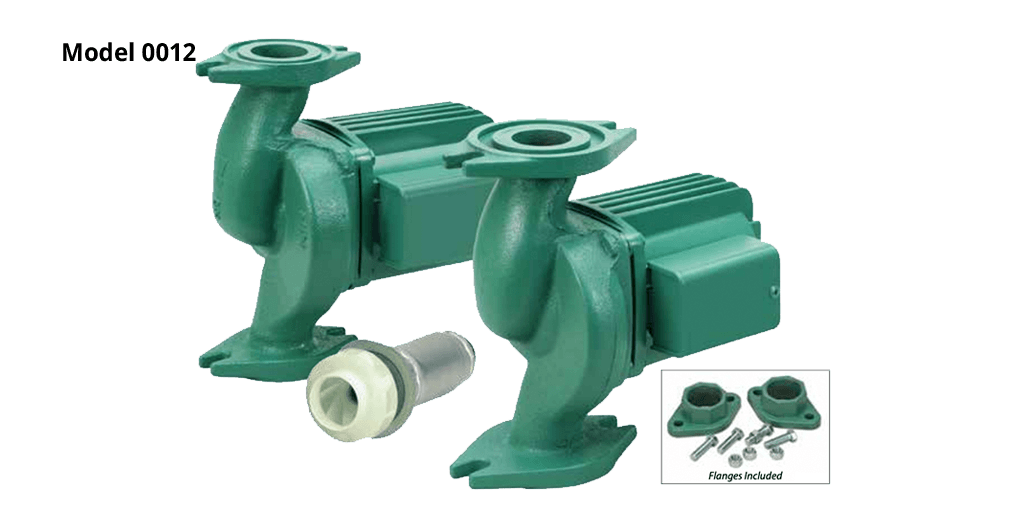

Taco | 0012-F4-4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 0012-F4-4

Documents and manuals

Taco 0012-F4-4 Documents

Overview

Details for 0012-F4-4

Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged (1-1/2" rotated kit included) | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-50 GPM
Head Range: 0-14.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 1-1/4", 1-1/2", 2" Flanged
The High Velocity Series Taco 0012 Cartridge Circulator is specifically designed for high-flow/medium-head applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or bronze construction. Bronze can be used on open-loop systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0012 to easily replace other models. 0012-F4 is a direct replacement for the HV Series and the 0012-F4-1 is a direct replacement for the 2" Series using existing flanges.
Features
Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup
High Velocity Performance Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction
Packed with 1-1/2" Flanges (19401542F)

Typical Applications
Large BTUH Boilers
2" Recirculation Loops
Primary/Secondary Loops
Commercial Water Heaters Light Commercial Heating and Cooling Systems

Replacement Parts List:
Casing O-Ring: 0012-006RP
Flange Gasket Set: 0012-020RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0012-011RP

Specifications

Item Number 0012-F4-4
Brand Taco
Amperage 1.33
Amps 1.33A
Application Heating
Connection Size 1-1/2"
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-50
Head Range (ft.) 0-14.5
Hertz 60
Horse Power 1/8
HP 1/8 HP
Material Cast Iron
Max Flow (GPM) 50
Max Flow 52 GPM
Max Head (Ft) 14.5
Max Head Pressure 14.5ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3250
RPM 3250 RPM
Series Series 0012
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
