0012-BF4-J | Circulator Pump | Bronze | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012 | Taco
Overview Details for 0012-BF4-J
Circulator Pump | Bronze | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012

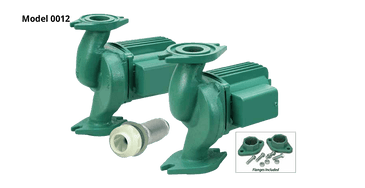

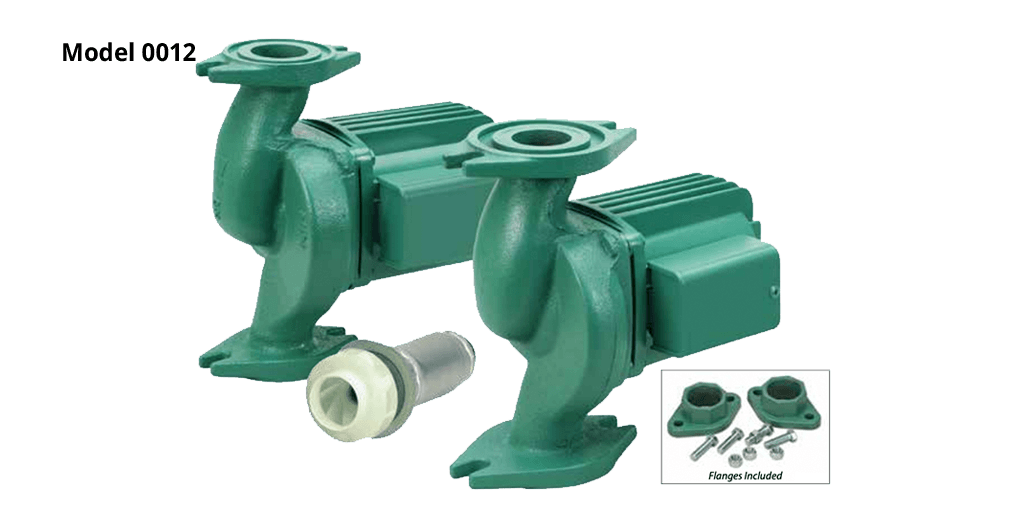

Model 0012 Cartridge Circulator
The High Velocity series Taco 0012 Cartridge Circulator is designed for high flow / medium head applications in Large Residential / Light Commercial Hydronic heating, Radiant heating, and Chilled Water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available in Cast Iron or Bronze construction.
Application
The Taco 0012 is specifically designed for high flow / medium head applications in Large residential and Light Commercial systems. Ideal for large BTUH Boilers, 2" Recirculation Loops, Primary/Secondary Loops, Commercial Water Heaters and light Commercial Heating and Cooling systems. The Bronze 0012 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0012 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs. The 0012-F4 is a direct replacement for the HV Series and the 0012-F4-1 is a direct replacement for the 2" Series using existing flanges.
Specifications
Item Number | 0012-BF4-J |
Brand | Taco |
Amps | 1.33A |
Connection | Flanged |
HP | 1/8 HP |
Material | Bronze |
Max Flow | 52 GPM |
Max Head Pressure | 14.5ft |
Max Pressue | 125 PSI |
Optional | |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 RPM |
Series | Series 0012 |
Type | Pump |
Voltage | 115V |
