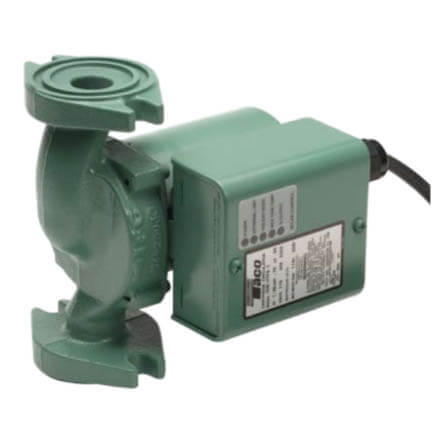

0011-VTF4 | VARIABLE SPEED CIRCULATOR | CAST IRON | FLANGED | 115V | VT | CORD | Taco
Documents and manuals
Taco 0011-VTF4 Documents
Overview
Details for 0011-VTF4
VARIABLE SPEED CIRCULATOR | CAST IRON | FLANGED | 115V | VT | CORD
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The Taco Variable Speed Solar Control Circulators combine the advanced features of Taco's external speed and solar controls with the reliability and convenience of the 009 Cartridge Circulator. All the wiring for power and sensors is done directly to the circulator while the LED status panel makes it easy to check functionality. Dip switch based user configurable settings makes for a fast set-up, no matter the solar application. The circulator continually adjusts its speed, maximizing the output of the collector, increasing the usable higher temperature water throughout the day, eliminating short cycling and increasing system performance by 20%.
Features:
- All-in-One Pump and Variable Speed Solar Control
- User Definable Line Voltage Output,Supports Drain Back Applications
- Freeze Protection for Open Systems
- Holiday Function, Minimizes Collector Stagnation
- Factory Installed Line Cord
- Adjustable Storage Tank Maximum Setting
Specifications
| Item Number | 0011-VTF4 |
| Brand | Taco |
| Amperage | 1.76 |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Flow Range (GPM) | 0-31 |
| Head Range (ft.) | 0-31 |
| Horse Power | 1/8 |
| Material | Cast Iron |
| Max Flow (GPM) | 31 |
| Max Head (Ft) | 31 |
| Max Pressure (PSI) | 125 |
| Max Temp (F) | 230°F |
| RPM | 3250 |
| Series | Series 0011 |
| Type | Pump |
| Type | Var. Speed Pump |
| Voltage | 115v |
