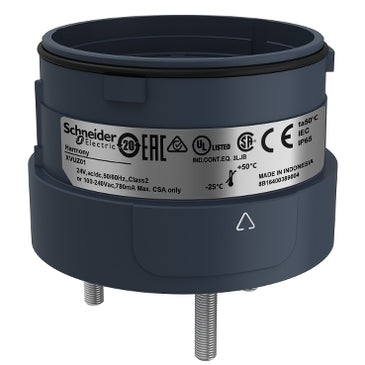

XVUZ01 | Fixing Unit - 3 Pins Direct Mounting - Black | Square D by Schneider Electric

Brand: Square DSKU: XVUZ01

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVUZ01

Jump to: Overview & Specifications Reviews

Overview Details for XVUZ01

Fixing Unit - 3 Pins Direct Mounting - Black

This black fixing unit is a mounting and fixing accessory for modular tower light. It is supplied with 110V-240V AC/DC and has a mounting diameter of 60mm. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XVU
Product or Component Type: Modular tower light
accessory / separate part type: Mounting plate
accessory / separate part category: Mounting and fixing accessory
component name: XVU
mounting diameter: 2.36 in (60 mm)
Number of pins: 3
Mounting Support: Direct mounting
product compatibility: Top AC body;Top DC body;Top swivel mounting support
material: PBT (polybutylene terephthalate) V-0 UL 94;ABS (acrylonitrile butadiene-styrene);PC (polycarbonate)
Housing Colour: Black
Connections - Terminals: Push-in
[Us] Rated Supply Voltage: 24 V AC/DC;110...240 V AC
Length: 0.67 in (17 mm)
Net Weight: 0.14 lb(US) (0.063 kg)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
IP degree of protection: IP65
Product Certifications: CSA;UL;CE
Category: 22618-XVU TOWER LIGHTS
Discount Schedule: XV
GTIN: 3606480556036
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.54 in (9 cm)
Package 1 Width: 5.24 in (13.3 cm)
Package 1 Length: 3.58 in (9.1 cm)
Package 1 Weight: 5.29 oz (150 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 9.79 lb(US) (4.44 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 192
Package 3 Height: 23.62 in (60 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 27.56 in (70 cm)
Package 3 Weight: 81.13 lb(US) (36.8 kg)
