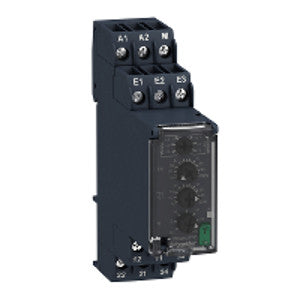

RM22TG20 | Zelio Control Relay, 3-Phase, 208-480V AC, 8A, 2 C/O, Screw Terminals | Square D by Schneider Electric

Brand: Square DSKU: RM22TG20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for RM22TG20

Zelio Control Relay, 3-Phase, 208-480V AC, 8A, 2 C/O, Screw Terminals

Zelio Control Relay

Network Number of Phases: 3 Phases
Relay Monitored Parameters: Phase sequence, Phase failure detection
Measurement Range:183-528V AC
Maximum Switching Voltage: 250V AC
Maximum Switching Current: 8A AC
Rated Supply Voltage: 208-480V AC
Output Contacts: 2 C/O
Mounting Position: Any
Connections - Terminals: Screw terminals
Status LED: LED yellow for relay ON, LED green for power ON
Degree of Protection: IP20 on terminals, IP40 on housing, IP50 on front panel, conforming to IEC 60529
