PK23GTAL | Load center accessory, QO/Homeline, ground bar kit, 23 terminals, with AWG 1-4/0 lug in aluminum or copper | Square D by Schneider Electric

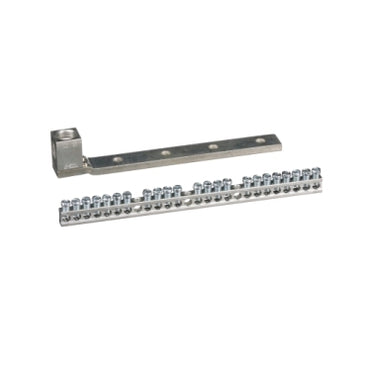

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PK23GTAL

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D PK23GTAL Documents

Datasheet

Overview

Details for PK23GTAL

Load center accessory, QO/Homeline, ground bar kit, 23 terminals, with AWG 1-4/0 lug in aluminum or copper

QO® Circuit Breaker Load Centers, PK23GTAL, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Specifications

product line: QO
product type: Bar
number of connectors: 24
wire size: AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium;AWG 4...AWG 1 aluminium/copper
provided equipment: 2 screw
bar length: 9.45 in (240 mm)
maximum length of segment: 3.15 in (80 mm)
device mounting: Direct mounting back of enclosure
Height: 0.437 in (11.10 mm)
Depth: 0.312 in (7.92 mm)
tightening torque: 30 lb.in;Mounting screw 30 lb.in;20 lb.in;AWG 14...AWG 10;copper;20 lb.in;AWG 12...AWG 10;aluminium;35 lb.in;AWG 6...AWG 4;25 lb.in;AWG 8;25 lb.in;AWG 14...AWG 12;copper;25 lb.in;AWG 12...AWG 10;aluminium
Category: 00102-QO LC ACCESSORIES
Discount Schedule: DE3A
GTIN: 785901440895
Number of Units in Package 1: 1
Package 1 Weight: 6.40 oz (181.437 g)
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Package 1 Height: 0.30 in (0.762 cm)
Package 1 Width: 1.60 in (4.064 cm)
Package 1 Length: 8.10 in (20.574 cm)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1100
Package 2 Weight: 469.42 lb(US) (212.926 kg)
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Warranty: 18 months
