NSYPLM64G | Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm | Square D

Brand: Square DSKU: NSYPLM64G

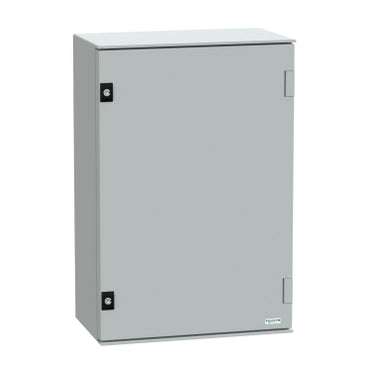

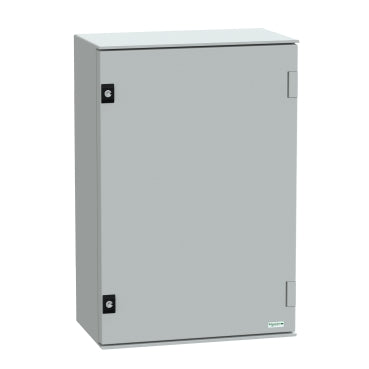

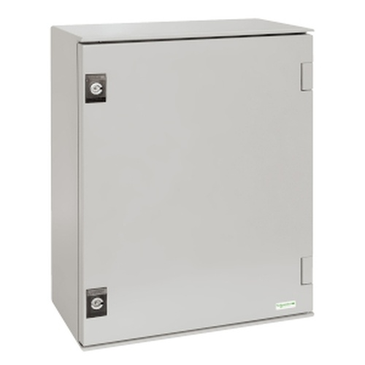

Square D | NSYPLM64G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYPLM64G
Jump to: Overview & Specifications Reviews

Overview Details for NSYPLM64G

Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm

Thalassa PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Specifications

range
Thalassa
product name
Thalassa PLM
device short name
PLM
Enclosure type
Multi-purpose
Category
Compact enclosure
Nominal height
25.47 in (647 mm)
Nominal width
17.17 in (436 mm)
Nominal depth
9.84 in (250 mm)
enclosure mounting
Wall mounted
device composition
1 body;1 door;2 lock
door type
Solid
lock type
3 mm double-bar lock
number of locks
2
mounting plate description
Without mounting plate
accessibility for operation
Front
removable parts
Door by hinges
material
polyester reinforced with fibreglass
color
Gray RAL 7035)
Standards
NEMA classification 13;NEMA classification 4X;IEC 62208
Product Certifications
UL
Electrical Insulation Class
Class II
IP degree of protection
IP66 IEC 60529
IK degree of protection
IK10 IEC 62262
fire resistance
1760 °F (960 °C) IEC 62208
Ambient air temperature for operation
-40…176 °F (-40…80 °C)
Category
80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule
ES1
GTIN
3606480776632
Returnability
Yes
Country of origin
ES
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.83 in (27.5 cm)
Package 1 Width
18.11 in (46.0 cm)
Package 1 Length
27.95 in (71.0 cm)
Package 1 Weight
27.21 lb(US) (12.341 kg)
