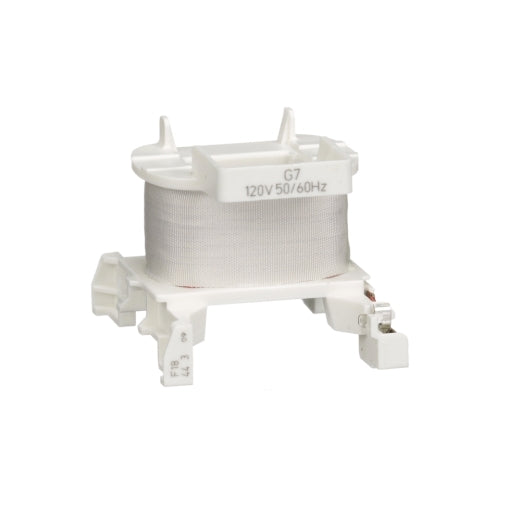

LXD1G7 | TeSys D Contactor Coil, 120V AC 50/60 Hz for 9-38 A Contactor | Square D by Schneider Electric

Brand: Square DSKU: LXD1G7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LXD1G7

Jump to: Overview & Specifications Reviews

Overview Details for LXD1G7

TeSys D Contactor Coil, 120V AC 50/60 Hz for 9-38 A Contactor

TeSys Deca replacement coil 120V AC 60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or component type: Contactor coil
device short name: LXD1
Control circuit type: AC at 50/60 Hz
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Average resistance: 150.6 Ohm at 20 °C
Inductance of closed circuit: 5.4 H
Product compatibility: LC1D09...D38
CAD
LC1DT20...DT40
Mechanical durability: 15 Mcycles
Maximum operating rate: 3600 cyc/h 60 °C
Coil technology: Without built-in suppressor module
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 2…3 W at 50/60 Hz
Ambient air temperature for operation: -5…60 °C
Net weight: 0.07 kg
