LX1D8F7 | TeSys D Contactor Coil, 110V AC 50/60 Hz for 115 & 150 A Contactor | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: LX1D8F7

Web Price:

$97.60
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

LX1D8F7 | TeSys D Contactor Coil, 110V AC 50/60 Hz for 115 & 150 A Contactor | Square D by Schneider Electric

Square D | LX1D8F7
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LX1D8F7

Documents and manuals

Square D LX1D8F7 Documents

Overview

Details for LX1D8F7

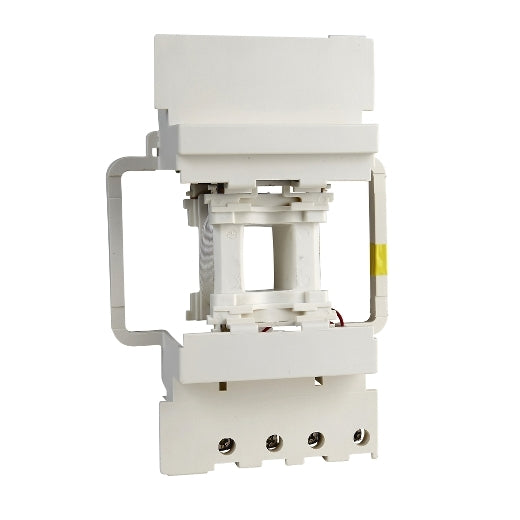

TeSys D Contactor Coil, 110V AC 50/60 Hz for 115 & 150 A Contactor

TeSys Deca replacement AC coil 110V 50/60Hz for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.8-1.15 Uc and environments until 55°C Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).

Specifications

Range
TeSys
Product or component type
Contactor coil
device short name
LX1D8
Control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
110 V AC 50/60 Hz
Average resistance
4377 Ohm at 20 °C
Inductance of closed circuit
109.69 H
Product compatibility
LC1D150
LC1D115
Mechanical durability
8 Mcycles
Maximum operating rate
1200 cyc/h 60 °C
Coil technology
Without built-in suppressor module
Control circuit voltage limits
Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
Inrush power in VA
280…350 VA 60 Hz cos phi 0.9 (at 20 °C)
280…350 VA 50 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA
2…18 VA 60 Hz cos phi 0.9 (at 20 °C)
2…18 VA 50 Hz cos phi 0.9 (at 20 °C)
Heat dissipation
3…4.5 W at 50/60 Hz
Ambient air temperature for operation
-5…60 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.3 cm
Package 1 Width
11.5 cm
Package 1 Length
17.0 cm
Package 1 Weight
301.0 g
Unit Type of Package 2
S03
Number of Units in Package 2
20
Package 2 Height
30.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
6.57 kg
Warranty
18 months
