LC2D09BL | REVERSING CONTACTOR 575VAC 9A IEC | Square D by Schneider Electric

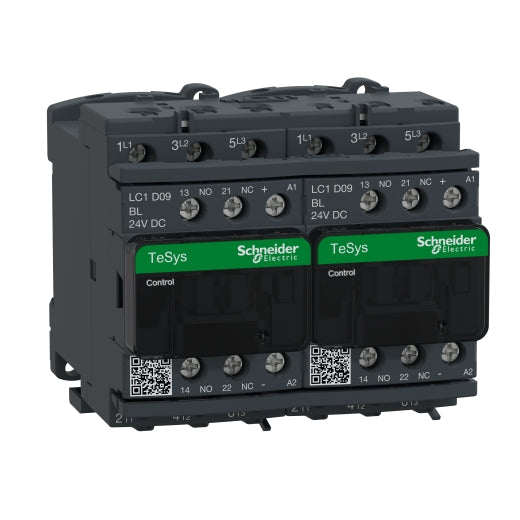

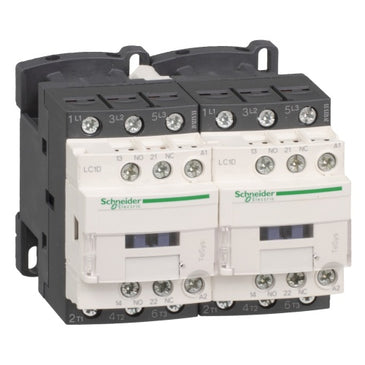

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC2D09BL
Documents and manuals
Square D LC2D09BL Documents
Overview
Details for LC2D09BL
REVERSING CONTACTOR 575VAC 9A IEC
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3 (4kW@400V). It is provided with 24V DC low consumption coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).- Range
- TeSys
TeSys Deca - Product name
- TeSys D
TeSys Deca - Product or component type
- Reversing contactor
- device short name
- LC2D
- contactor application
- Resistive load
Motor control - Utilisation category
- AC-3
AC-1
AC-3e - device presentation
- Preassembled with reversing power busbar
- Poles description
- 3P
- power pole contact composition
- 3 NO
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC - [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit - Motor power kW
- 2.2 kW at 220...230 V AC 50...60 Hz
4 kW at 380...400 V AC 50...60 Hz
4 kW at 415 V AC 50...60 Hz
4 kW at 440 V AC 50...60 Hz
5.5 kW at 500 V AC 50...60 Hz
5.5 kW at 660...690 V AC 50...60 Hz - motor power HP (UL / CSA)
- 0.5 hp at 115 V AC 60 Hz for 1 phase motors
1 hp at 230/240 V AC 60 Hz for 1 phase motors
2 hp at 200/208 V AC 60 Hz for 3 phases motors
2 hp at 230/240 V AC 60 Hz for 3 phases motors
5 hp at 460/480 V AC 60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 60 Hz for 3 phases motors - Control circuit type
- DC low consumption
- [Uc] control circuit voltage
- 24 V DC
- auxiliary contact composition
- 1 NO + 1 NC
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947
- Overvoltage category
- III
- [Ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
25 A (at 60 °C) for power circuit - Irms rated making capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1 - Rated breaking capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- [Icw] rated short-time withstand current
- 30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
105 A 40 °C - 10 s for power circuit
210 A 40 °C - 1 s for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit - Associated fuse rating
- 25 A gG at <= 690 V coordination type 1 for power circuit
20 A gG at <= 690 V coordination type 2 for power circuit
10 A gG for signalling circuit conforming to IEC 60947-5-1 - Average impedance
- 2.5 mOhm - Ith 25 A 50 Hz for power circuit
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified - Electrical durability
- 0.6 Mcycles 25 A AC-1 at Ue <= 440 V
2 Mcycles 9 A AC-3 at Ue <= 440 V
2 Mcycles 9 A AC-3e at Ue <= 440 V - Power dissipation per pole
- 0.2 W AC-3
1.56 W AC-1
0.2 W AC-3e - Front cover
- With
- Interlocking type
- Mechanical
- Mounting support
- Rail
Plate - Standards
- CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1 - product certifications
- DNV
CSA
CCC
UL
GL
LROS (Lloyds register of shipping)
BV
RINA
GOST
UKCA - Connections - terminals
- Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid - Tightening torque
- Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 - Operating time
- 65.45...88.55 ms closing
20...30 ms opening - Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 - Mechanical durability
- 30 Mcycles
- Maximum operating rate
- 3600 cyc/h 60 °C
- Coil technology
- Built-in bidirectional peak limiting diode suppressor
- Control circuit voltage limits
- 0.1...0.3 Uc (-40…70 °C):drop-out DC
0.8...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC - Time constant
- 40 ms
- Inrush power in W
- 2.4 W (at 20 °C)
- Hold-in power consumption in W
- 2.4 W at 20 °C
- Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 - Signalling circuit frequency
- 25...400 Hz
- Minimum switching current
- 5 mA for signalling circuit
- Minimum switching voltage
- 17 V for signalling circuit
- Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact - Insulation resistance
- > 10 MOhm for signalling circuit
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Climatic withstand
- conforming to IACS E10
conforming to IEC 60947-1 Annex Q category D - Protective treatment
- TH conforming to IEC 60068-2-30
- Pollution degree
- 3
- Ambient air temperature for operation
- -40…60 °C
60…70 °C with derating - Ambient air temperature for storage
- -60…80 °C
- Operating altitude
- 0...3000 m
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Flame retardance
- V1 conforming to UL 94
- Mechanical robustness
- Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms - Height
- 77 mm
- Width
- 90 mm
- Depth
- 95 mm
- Net weight
- 1.017 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.5 cm
- Package 1 Width
- 9.5 cm
- Package 1 Length
- 13.8 cm
- Package 1 Weight
- 1.145 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 6
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 7.241 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 96
- Package 3 Height
- 75 cm
- Package 3
