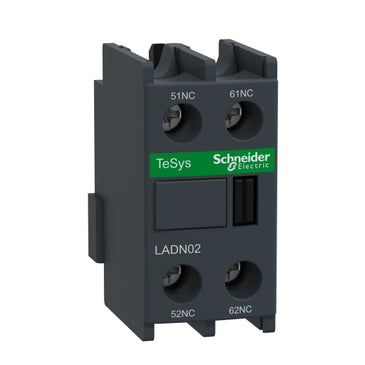

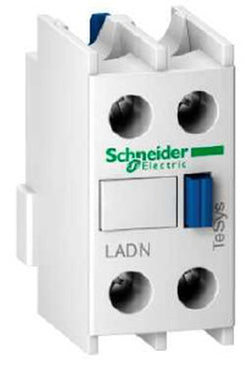

LADN02 | TeSys D Auxiliary Contact Block, 2 NC, Screw Clamp Terminals, 690V AC 25-400 Hz | Square D by Schneider Electric

Brand: Square DSKU: LADN02

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN02

Jump to: Overview & Specifications Reviews

Overview Details for LADN02

TeSys D Auxiliary Contact Block, 2 NC, Screw Clamp Terminals, 690V AC 25-400 Hz

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Auxiliary contact block
device short name: LADN
Range compatibility: TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location: Front
Pole contact composition: 2 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
product certifications: CB
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 26 mm
Depth: 42 mm
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.8 cm
Package 1 Width: 4.2 cm
Package 1 Length: 5.2 cm
Package 1 Weight: 34 g
Unit Type of Package 2: S03
Number of Units in Package 2: 320
Package 2 Height: 30 cm
Package 2 Width: 30 cm
Package 2 Length: 40 cm
Package 2 Weight: 11.367 kg
