LAD9R1 | CONTACTOR KIT | Square D by Schneider Electric

Square D | LAD9R1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LAD9R1
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Square D LAD9R1 Documents

Datasheet

Overview

Details for LAD9R1

CONTACTOR KIT

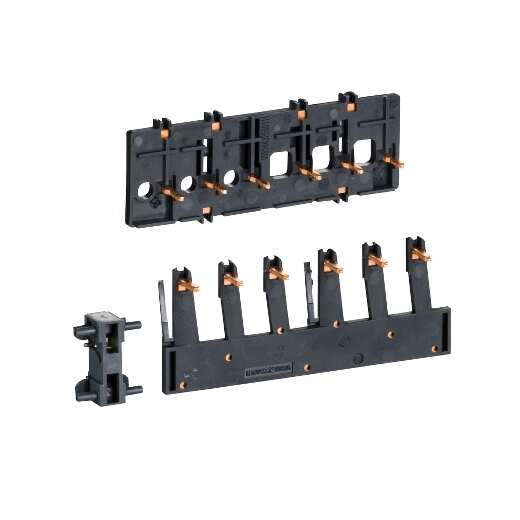

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

Specifications

Range of product
TeSys Deca
Range
TeSys
Linergy
device short name
LAD9
Product or component type
Kits for reversing contactor
Poles description
3P
Range compatibility
TeSys (TeSys D) contactor
TeSys (TeSys Deca)
Product compatibility
LC1D09
LC1D12
LC1D18
LC1D25
LC1D32
LC1D38
kit composition
Mechanical interlock
Set of power connection
Net weight
0.045 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.712 cm
Package 1 Width
3.715 cm
Package 1 Length
8.810 cm
Package 1 Weight
61.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
9.400 cm
Package 2 Width
10.000 cm
Package 2 Length
15.000 cm
Package 2 Weight
636.000 g
Unit Type of Package 3
S03
Number of Units in Package 3
140
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
9.350 kg
Warranty
18 months
