LAD8N20 | TeSys D - Auxiliary Contact block - 2 NO, Screw, clamps terminals | Square D by Schneider Electric

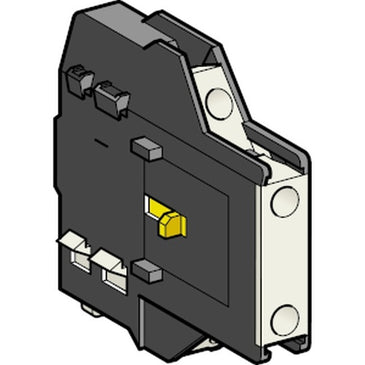

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LAD8N20
Documents and manuals
Square D LAD8N20 Documents
Overview
Details for LAD8N20
TeSys D - Auxiliary Contact block - 2 NO, Screw, clamps terminals
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NO contacts rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Specifications
- Range
- TeSys
- Product name
- TeSys Deca
- Product or component type
- Auxiliary contact block
- Range compatibility
- TeSys Deca LC1D09…95 AC coil
TeSys Deca LC1D40A…80A AC Coil
TeSys Deca LC1D115/150
TeSys Deca CAD AC coil
TeSys F LC1F - Mounting location
- Side
- Pole contact composition
- 2 NO
- Contacts operation
- Instantaneous
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- [Ie] rated operational current
- 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13 - [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA - [Ith] conventional free air thermal current
- 10 A (at 60 °C)
- Standards
- EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
EN 50012 - product certifications
- CB
UL
CSA
CCC
EAC
UKCA - Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1 - Permissible short-time rating
- 100 A 1 s
120 A 500 ms
140 A 100 ms - Protection type
- GG fuse 10 A
- Mechanical durability
- 30 Mcycles
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact - Insulation resistance
- > 10 MOhm
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end - Tightening torque
- 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2 - Height
- 76 mm
- Width
- 12.5 mm
- Depth
- 76 mm
- Environmental characteristic
- Normal environment
- IP degree of protection
- IP20 conforming to IEC 60529
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for storage
- -60…80 °C
- Ambient air temperature for operation
- -5…60 °C
- Operating altitude
- 3000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.802 cm
- Package 1 Width
- 7.313 cm
- Package 1 Length
- 7.861 cm
- Package 1 Weight
- 61.2 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 60
- Package 2 Height
- 15.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 4.5 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 960
- Package 3 Height
- 75 cm
- Package 3 Width
- 60 cm
- Package 3 Length
- 80 cm
- Package 3 Weight
- 80 kg
