LAD4RCG | TeSys D Suppressor Module, RC Circuit, 50-127 V AC <=400 Hz | Square D by Schneider Electric

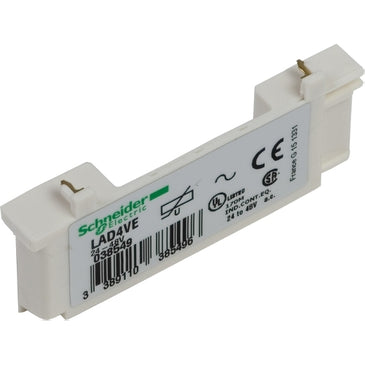

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAD4RCG

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LAD4RCG Documents

Datasheet

Overview

Details for LAD4RCG

TeSys D Suppressor Module, RC Circuit, 50-127 V AC <=400 Hz

TeSys Deca suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 50-127V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
device short name: LAD4
Product or component type: Suppressor module
Product compatibility: 3P LC1D09...D38
4P LC1DT20...DT40
4P LC1D098...D258
CAD32, CAD50
Mounting location: Side
Mounting mode: By clips
Suppressor technology: RC circuit
[Uc] control circuit voltage: 50...127 V AC
Maximum peak voltage: 3 Uc
Net weight: 0.012 kg
Standards: IEC 60947-5-1
EN 60947-5-1
CSA C22.2 No 60947-5-1
UL 60947-5-1
GB/T 14048.5
product certifications: UL
CSA
IP degree of protection: IP2X conforming to IEC 60529
Ambient air temperature for operation: -25…55 °C
Ambient air temperature for storage: -40…80 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.100 cm
Package 1 Width: 8.000 cm
Package 1 Length: 4.000 cm
Package 1 Weight: 14.000 g
Unit Type of Package 2: S01
Number of Units in Package 2: 70
Package 2 Height: 15.000 cm
Package 2 Width: 15.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 1.195 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 1120
Package 3 Height: 45.000 cm
Package 3 Width: 60.000 cm
Package 3 Length: 80.000 cm
Package 3 Weight: 27.500 kg
Warranty: 18 months
