Documents: EMKA934552L204034X
EMKA934552L204034X | Energy meter kits for 120/208V-240V L-L-N, A9MEM3455 meter, 2- 400A LVCTs Solid Core, NEMA Type 4X Enclosure | Square D by Schneider Electric

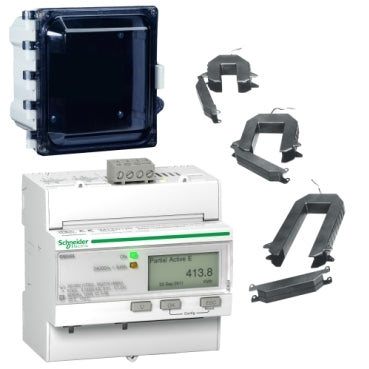

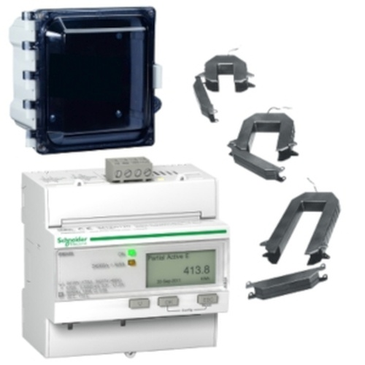

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EMKA934552L204034X
Overview Details for EMKA934552L204034X
Energy meter kits for 120/208V-240V L-L-N, A9MEM3455 meter, 2- 400A LVCTs Solid Core, NEMA Type 4X Enclosure
Specifications
- Product or Component Type
- Energy meter kit
- poles description
- 3P + N;1P + N;3P
- type of measurement
- Active and reactive energy;Active and reactive power;Current;Voltage
- metering type
- Active;reactive;apparent energy (signed;four quadrant)
- Device Application
- Sub billing;Multi-tariff;Partial meter
- rated voltage
- 100…277 V +/- 20 %;173…480 V +/- 20 %
- Network Frequency
- 60 Hz;50 Hz
- Technology Type
- Electronic
- Display Type
- LCD display
- current transformer type
- Solid core
- Line Rated Current
- 400 A
- measurement accuracy
- +/- 0.5 % 5...120 %
- enclosure mounting
- Wall mounted
- communication port protocol
- Modbus RTU 9.6;19.2 and 38.4 kbauds even/odd or none
- communication port support
- Screw terminal block RS485
- local signalling
- Green indicator light power ON;Yellow flashing LED accuracy checking;alarm overload;Yellow indicator light communications are active on the Modbus port (Modbus)
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- connections - terminals
- Current circuit screw terminals 0.01 in² (6 mm²);Voltage circuit screw terminals 0.00 in² (2.5 mm²);Input/output circuit screw terminals 0.00 in² (1.5 mm²);Communication screw terminals 0.00 in² (2.5 mm²)
- tightening torque
- Input/output circuit 4.43 lbf.in (0.5 N.m) Philips;Voltage circuit 4.43 lbf.in (0.5 N.m) Philips;Current circuit 7.08 lbf.in (0.8 N.m) pozidriv;Communication 4.43 lbf.in (0.5 N.m) Philips
- provided equipment
- 1 energy meter;2 x 400 A current transformer;1 enclosure
- product certifications
- ANSI;UL;CSA
- NEMA Degree of Protection
- NEMA 4X
- ambient air temperature for operation
- -13…158 °F (-25…70 °C)
- Category
- 09775-ENERGY METER KITS
- Discount Schedule
- PL1
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 10.15 lb(US) (4.604 kg)
