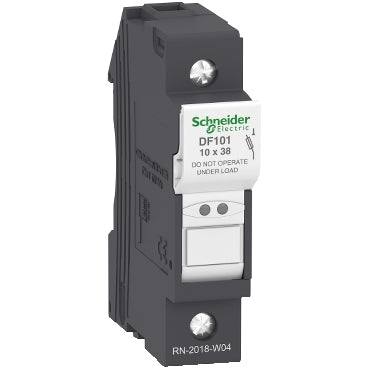

DF101 | Fuseholder, 600V, TeSyS fuse-disconnector - 1P - 25A - fuse size 10 x 38 mm Pack of 12 | Square D

Brand: Square DSKU: DF101

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DF101

Jump to: Overview & Specifications Reviews

Overview Details for DF101

Fuseholder, 600V, TeSyS fuse-disconnector - 1P - 25A - fuse size 10 x 38 mm

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys DF
Product or Component Type: Fuse carrier
device short name: DF10
product compatibility: DF2CA fuse cartridge;DF2CN fuse cartridge
poles description: 1P
fuse size: 10 x 38 mm
fuse type: ;aM;;gG
control type: Toggle padlockable
utilisation category: AC-20B IEC 60947-3;DC-20B IEC 60947-3
[Ue] rated operational voltage: 690 V AC;690 V DC
[Ie] rated operational current: 32 A 400 V AC
[Ith] conventional free air thermal current: 32 A 68 °F (20 °C)
[Ui] rated insulation voltage: 690 V AC
[Uimp] rated impulse withstand voltage: 6 kV
overvoltage category: III
short-circuit withstand: 120 kA 400 V IEC 60947-3;120 kA 500 V IEC 60947-3
power dissipation in W: 3 W maximum power dissipation by fuse
standards: EN/IEC 60947-3;EN/IEC 60269-2;UL 4248-1;CSA C22.2 No 4248-1;EN 45545-2: R22 HL2
product certifications: IEC;UL Recognized;CSA;CCC;EAC;DNV-GL
Mounting Support: 35 mm symmetrical DIN rail
mounting position: Vertical +/- 23°)
connections - terminals: screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)rigid;screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)rigid;screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)flexible with or without;screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)flexible with or without
tightening torque: 19.47 lbf.in (2.2 N.m) PZ2;19.47 lbf.in (2.2 N.m) flat Ø 5.5 mm
Height: 3.13 in (79.5 mm)
Width: 0.69 in (17.5 mm)
Depth: 2.40 in (61 mm)
Net Weight: 0.09 lb(US) (0.042 kg)
Quantity per Set: Set of 12
ambient air temperature for storage: -40…158 °F (-40…70 °C)
ambient air temperature for operation: -40…158 °F (-40…70 °C) with derating above 20°C
operating altitude: 0...6561.68 ft (0...2000 m)
IP degree of protection: IP20
pollution degree: 3
fire resistance: 1760 °F (960 °C) IEC 60695-2-1
compatibility code: DF10
Category: 21714-DF FUSEHOLDERS
Discount Schedule: CP1
GTIN: 3389119407205
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.67 in (1.7 cm)
Package 1 Width: 2.44 in (6.2 cm)
Package 1 Length: 3.15 in (8 cm)
Package 1 Weight: 1.55 oz (44 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 12
Package 2 Height: 2.76 in (7 cm)
Package 2 Width: 3.35 in (8.5 cm)
Package 2 Length: 8.74 in (22.2 cm)
Package 2 Weight: 19.96 oz (566 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 192
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 20.96 lb(US) (9.509 kg)
Warranty: 18 months
