9422ATDF631 | Operating mechanism, fuse switch, 60 A 600 VAC, 9422A1 handle | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: 9422ATDF631

Web Price:

$589.95
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

9422ATDF631 | Operating mechanism, fuse switch, 60 A 600 VAC, 9422A1 handle | Square D by Schneider Electric

Square D | 9422ATDF631
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9422ATDF631

Documents and manuals

Square D 9422ATDF631 Documents

Overview

Details for 9422ATDF631

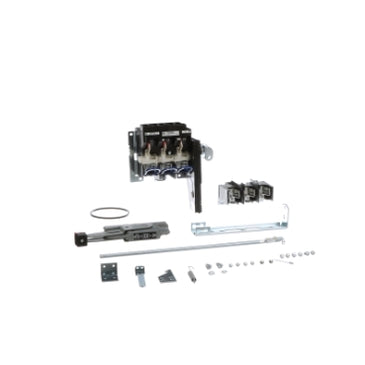

Operating mechanism, fuse switch, 60 A 600 VAC, 9422A1 handle

Operating mechanism, fuse switch, 60 A 600 VAC, 9422A1 handle
  • Device short name: MX
  • Range: 9422T
  • Product: Disconnect Switch
  • Disconnect Type: Fusible disconnect switch
  • Mounting Type: Flange rod variable depth
  • Current Rating: 60 A
  • Horsepower Rating: 15 hp 200 V AC, 15 hp 230 V AC, 30 hp 460 V AC, 50 hp 575 V AC, 10 hp 250 V DC
  • Fuse Rating: 60 A 600 V
  • Handle Type: 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
9422ATDF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 600 V. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC max when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Switch is UL component recognized and CSA certified.

Specifications

Range
9422T
Product
Disconnect Switch
Disconnect Type
Fusible disconnect switch
Mounting Type
Flange rod variable depth
Current Rating
60 A
Horsepower Rating
15 hp 200 V AC;15 hp 230 V AC;30 hp 460 V AC;50 hp 575 V AC;10 hp 250 V DC
Fuse Rating
60 A 600 V
Handle Type
6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Fuse Type
J;R;H;K
Certifications
UL Recognized;CSA
Category
21732-9422
Discount Schedule
CP1
GTIN
785901872191
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.10 in (18.034 cm)
Package 1 Width
11.20 in (28.448 cm)
Package 1 Length
16.00 in (40.64 cm)
Package 1 Weight
9.05 lb(US) (4.105 kg)
Warranty
18 months
