8910DPA33V02U1 | CONTACTOR 600VAC 30AMP DPA +OPTIONS | Square D by Schneider Electric

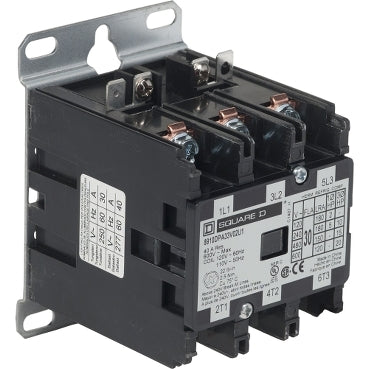

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DPA33V02U1
Documents and manuals
Square D 8910DPA33V02U1 Documents
Overview
Details for 8910DPA33V02U1
CONTACTOR 600VAC 30AMP DPA +OPTIONS
Contactor, Definite Purpose, 30A, 3 pole, 20 HP at 575 VAC, 3 phase, 110/120 VAC 50/60 Hz coil, open, UL Listed 8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL Listed and CSA Certified.Specifications
- Product or Component Type
- Definite Purpose Contactor
- Line Rated Current
- 30 A
- Number of Poles
- 3P
- pole contact composition
- 3 NO
- Range of Product
- DPA
- Maximum Horse Power Rating
- 2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;15 hp 460 V AC;3 phase;20 hp 575 V AC;3 phase
- locked rotor rated current
- 150 A 460 V AC;120 A 575 V AC;180 A 277 V AC
- [Ue] rated operational voltage
- 600 V AC
- [Uc] control circuit voltage
- 120 V AC 60 Hz;110 V AC 50 Hz
- Phase
- 3 phase
- Electrical Connection
- Binder head
- Product Certifications
- UL Listed;CSA
- Category
- 21343-8910 DPA 3-(30 AMP)
- Discount Schedule
- CP1B
- GTIN
- 785901112426
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.20 in (8.128 cm)
- Package 1 Width
- 2.60 in (6.604 cm)
- Package 1 Length
- 4.20 in (10.668 cm)
- Package 1 Weight
- 16.64 oz (471.736 g)
- Warranty
- 18 months
