8910DP41V14 | Definite Purpose Contactor Type DP, 40A, 1-Pole, 24 VAC 50/60Hz | Square D by Schneider Electric

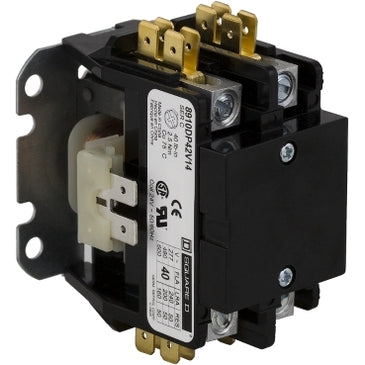

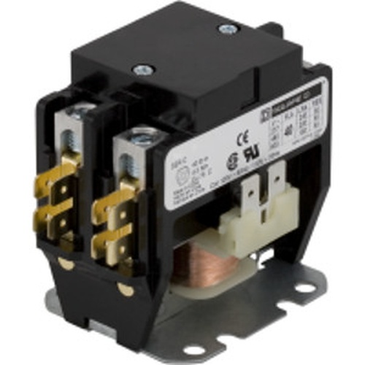

Square D | 8910DP41V14

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8910DP41V14

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 8910DP41V14 Documents

Overview

Details for 8910DP41V14

Definite Purpose Contactor Type DP, 40A, 1-Pole, 24 VAC 50/60Hz

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.

Specifications

Product or Component Type: Definite Purpose Contactor
Line Rated Current: 40 A
Number of Poles: 1P
pole contact composition: 1 NO
Range of Product: DP
Maximum Horse Power Rating: 2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase
locked rotor rated current: 240 A 277 V AC;200 A 460 V AC;160 A 575 V AC
[Ue] rated operational voltage: 600 V AC
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Phase: 1 phase
Electrical Connection: Quick connect terminals;Box lugs
Product Certifications: UL Recognized;CSA
Category: 21357-8910 DP41
Discount Schedule: CP1B
GTIN: 785901233053
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.30 in (5.842 cm)
Package 1 Width: 2.60 in (6.604 cm)
Package 1 Length: 3.40 in (8.636 cm)
Package 1 Weight: 8.16 oz (231.332 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 12
Package 2 Height: 5.90 in (14.986 cm)
Package 2 Width: 7.20 in (18.288 cm)
Package 2 Length: 7.20 in (18.288 cm)
Package 2 Weight: 6.44 lb(US) (2.921 kg)
Warranty: 18 months
