Documents: 8910DP32V02

Datasheet

8910DP32V02 | Definite Purpose Contactor Type DP, 30A, 2-Poles, 110 VAC 50HZ, 120 VAC 60Hz | Square D by Schneider Electric

Brand: Square DSKU: 8910DP32V02

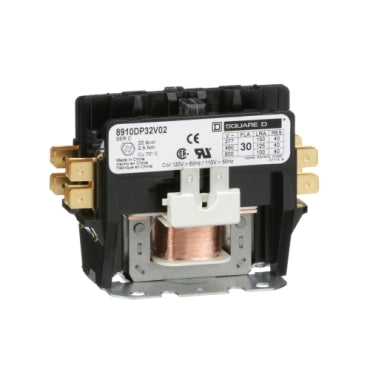

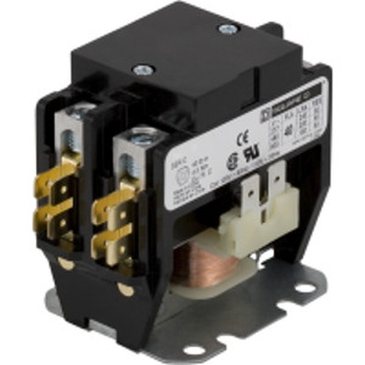

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8910DP32V02

Jump to: Overview & Specifications Reviews

Overview Details for 8910DP32V02

Definite Purpose Contactor Type DP, 30A, 2-Poles, 110 VAC 50HZ, 120 VAC 60Hz

Definite Purpose Contactor:

Range of Product: DP
Line Rated Current: 30A
Motor Power Horsepower: 2HP 115VAC, 5HP 230VAC
Number of Phases: 1-Phase
Number of Poles: 2-Pole
Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz
Enclosure Rating: Open
Mounting: Panel
System Voltage: 600VAC
Locked Rotor Rated Current: 125A 460 VAC, 100A 575 VAC, 150A 277 VAC
Electrical Connection: Quick Connect Terminals, Binder Head

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
