8903SMO2V02 | Lighting contactor, electrically held, 30 A, 3 pole, open, 120/110V 60/50Hz | Square D by Schneider Electric

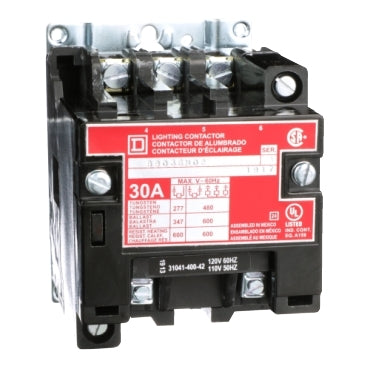

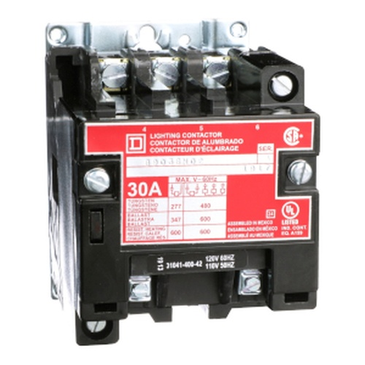

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8903SMO2V02
Documents and manuals
Square D 8903SMO2V02 Documents
Overview
Details for 8903SMO2V02
Lighting contactor, electrically held, 30 A, 3 pole, open, 120/110V 60/50Hz
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 3.50 inches tall, 3.22 inches wide and 4.22 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.Specifications
- Product
- Electrically Held Lighting Contactor
- Type
- S
- Control Circuit Voltage
- 120 V AC 60 Hz;110 V AC 50 Hz
- Current Rating
- 30 A
- Number of Poles
- 3P
- Control Units
- No control units
- Pilot Light
- Without pilot light
- Auxiliary Contacts
- Without
- Other Options
- None
- Electrical Connection
- Lugs
- Height
- 3.50 in (89 mm)
- Depth
- 4.21 in (107 mm)
- Width
- 3.23 in (82 mm)
- Enclosure Type
- Not rated (open device) surface none
- Product Certifications
- UL Listed;CSA
- Category
- 21325-8903 S (NOT S*C) ELECT.
- Discount Schedule
- CP1
- GTIN
- 785901619529
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.61 in (11.7 cm)
- Package 1 Width
- 5.91 in (15.0 cm)
- Package 1 Length
- 8.11 in (20.6 cm)
- Package 1 Weight
- 3.13 lb(US) (1.42 kg)
- Warranty
- 18 months
