Documents: SX-60V
SX-60V | Expansion Tank Extrol SX Hydronic 32 Gallon 100 Pounds per Square Inch Gauge 1" FNPT SX-60V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems | Amtrol
Overview Details for SX-60V

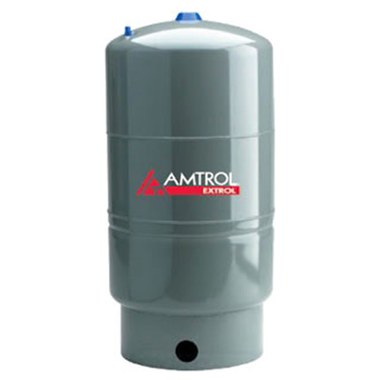

Expansion Tank Extrol SX Hydronic 32 Gallon 100 Pounds per Square Inch Gauge 1" FNPT SX-60V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems
Specifications
| Item Number | SX-60V |
| Brand | Amtrol |
| Application | Closed Hydronic Heating; Radiant and Chilled Water Systems |
| Collection | Expansion Tank Parts & Accessories |
| Diaphragm Material | Butyl/EPDM |
| Height | 48IN |
| Inlet/Outlet Connection | 1IN FNPT |
| Length | 15IN |
| Material | Steel |
| Part Number | SX-60V |
| Precharge Pressure | 12PSIG |
| Pressure | 100PSIG |
| Product Type | Hydronic |
| Standard | Non-ASME |
| Tank Capacity | 32GAL |
| Temperature | 240DEG F |
| Width | 15IN |
