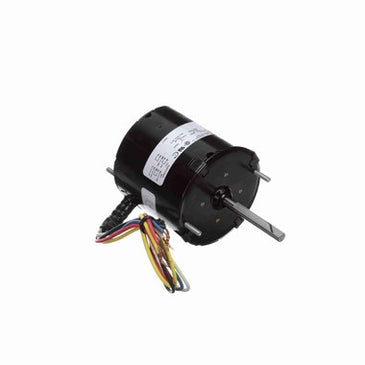

D1164 | Motor Singer OEM Replacement 1/25 Horsepower 1550 Revolutions per Minute 115/230 Volt 3.3 Inch Shaded Pole Motor | Fasco Motors

Brand: Fasco MotorsSKU: D1164

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D1164

Jump to: Overview & Specifications Reviews

Overview Details for D1164

The Fasco Motors D1164 is an OEM replacement motor designed for industrial applications. This 1/25 horsepower shaded pole motor operates at 1550 revolutions per minute and is compatible with 115/230 volts. Its compact 3.3-inch diameter and extended studs mounting type make it ideal for space-constrained installations. The motor features a thermally protected Class B insulation for durability and safety. With a 1.30/0.70 amp draw, 4 poles, and a sleeve bearing type, it delivers reliable performance in air over duty applications. The Fasco Motors D1164 is a dependable choice for powering fans, blowers, and other industrial equipment. Shop Our trusted HVAC store for the best prices and fast shipping on this high-quality OEM replacement motor!

Motor Singer OEM Replacement 1/25 Horsepower 1550 Revolutions per Minute 115/230 Volt 3.3 Inch Shaded Pole Motor

Specifications

Item Number	D1164
Brand	Fasco Motors
Amperage	1.30/0.70AMP
Bearing Type	Sleeve
Collection	Fan Motors
Diameter	3.3IN
Duty	Air Over
Electrical Type	Shaded Pole Motor
Enclosure	Totally Enclosed
Frequency	60HZ
Horsepower	1/25HP
Insulation Class	B
Mounting Type	Extended Studs
Number of Poles	4
Number of Speeds	1
Overload Protection	Thermally Protected
Phase	1
Product Type	OEM Replacement
Rotation	Clockwise Shaft End
Shaft Type	Flat
Speed	1550RPM
Voltage	115/230V
